What Are The Key Components of A PIR Motion Detector?

A PIR Motion Detector does more than sense body heat. It detects movement by responding to changes in infrared radiation within its coverage area. However, reliable detection depends on several components working together. A pyroelectric sensor, Fresnel lens, and signal processing circuit form the core detection system. Control electronics, power circuits, and output interfaces complete the device. Each component influences detection accuracy, coverage, response time, and system compatibility. Understanding how these parts interact helps you evaluate detector performance. We'll explore their functions, connections, and key design considerations for reliable motion detection.

The Essential Components Inside a PIR Motion Detector

A PIR Motion Detector contains several components working together to identify movement. These parts collect infrared radiation, convert changes into electrical signals, and produce usable outputs. Although designs vary, most detectors share the same basic operating principles.

The Core Components and Their Functions

The main components include a pyroelectric sensor, Fresnel lens, signal processing circuit, and control IC. They also need a stable power supply and an output interface. Some designs include protective housings, mounting structures, and adjustable control settings.

Not every detector requires these components as separate physical parts. Some integrated sensors already contain signal processing electronics. Others use separate circuits for greater design flexibility.

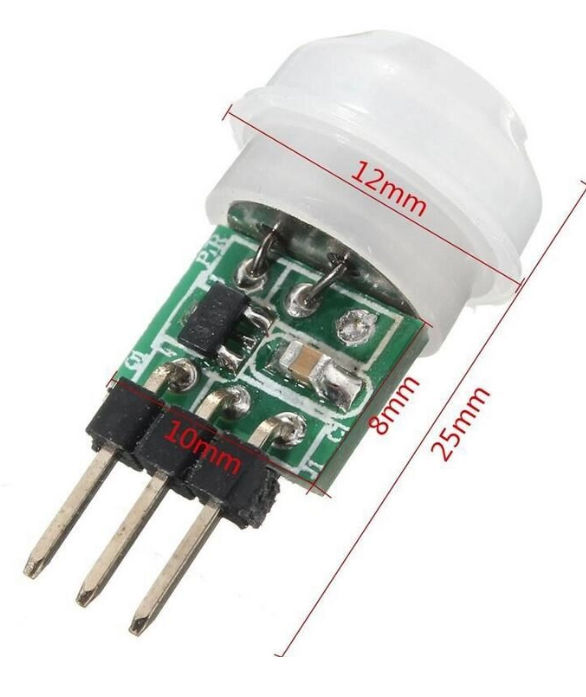

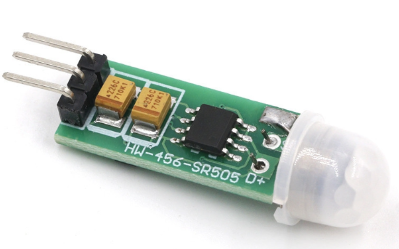

A basic PIR sensor differs from a complete detector module. The sensing element produces an electrical response, but additional components interpret that response. A complete module may provide a digital output ready for system integration.

For example, an automatic lighting system needs more than infrared detection alone. It must recognize movement, generate an output signal, and activate the lighting controller. These operations depend on coordinated component performance.

How the Pyroelectric Sensor Detects Infrared Changes

The pyroelectric sensor forms the central sensing component of a PIR Motion Detector. It responds to changes in infrared radiation reaching its sensing surface. These changes provide the electrical information needed for motion detection.

Pyroelectric Elements and Infrared Signal Generation

Pyroelectric materials produce electrical responses when their temperature changes. Infrared radiation from surrounding objects can create these temperature variations. When a person moves, the radiation pattern reaching the sensor changes.

Many PIR sensors contain two sensing elements arranged in a differential configuration. They respond differently as a moving heat source crosses their detection zones. This arrangement helps distinguish changing radiation patterns from some uniform temperature changes.

Consider someone walking across a room. Their body produces a different infrared pattern from many surrounding surfaces. As they move across detection zones, the sensing elements receive changing radiation levels. The sensor converts these changes into small electrical signals.

However, a pyroelectric sensor does not continuously measure whether someone remains present. A stationary person may produce little changing signal after the detector settles. This limitation explains why PIR technology primarily detects movement rather than continuous occupancy.

Sensor Construction and Performance Considerations

A typical pyroelectric sensor contains sensing elements inside a protective package. Its infrared-transmitting window allows relevant radiation to reach those elements. Many packages also include an internal field-effect transistor for signal buffering.

Several characteristics influence sensor performance:

• Sensitivity: Determines how effectively the sensor responds to small infrared changes.

• Electrical Noise: Affects how clearly useful signals can be distinguished from interference.

• Element Geometry: Influences the sensing pattern alongside the optical system.

• Operating Temperature: Determines suitable environmental conditions for stable performance.

Sensor architecture also affects the required supporting circuitry. Analog sensors generally provide signals requiring additional processing. Digital PIR sensors may integrate signal conditioning and detection logic.

Neither design automatically guarantees superior detection performance. Engineers should examine electrical characteristics, operating conditions, and integration requirements before selecting either type.

How the Fresnel Lens Controls Detection Coverage

The Fresnel lens is another essential component of a PIR Motion Detector. It directs infrared radiation toward the sensing elements and shapes detection coverage. Without suitable optics, the detector may struggle to monitor its intended area.

Infrared Focusing and Detection Zone Formation

A Fresnel lens contains specially shaped optical sections that redirect infrared radiation. These sections help create multiple detection zones across the monitored space. The resulting pattern allows moving heat sources to produce changing sensor signals.

As someone walks across these zones, their infrared image shifts between sensing regions. This movement creates changing electrical responses inside the pyroelectric sensor. The processing electronics can then identify a possible motion event.

Movement direction also affects detection performance. Walking across detection zones often produces stronger signal changes than approaching directly. Therefore, positioning a detector toward likely crossing paths can improve detection reliability.

Lens alignment remains important throughout this process. Incorrect spacing or positioning can change the intended detection pattern. Even a suitable sensor may perform poorly when its lens is incorrectly installed.

Lens Design, Detection Range, and Blind Spots

Different lens designs create different detection patterns. A narrow-angle lens concentrates coverage within a limited direction. A wide-angle design supports broader monitoring across an open area.

Installation requirements should guide the selection:

• Wall-Mounted Detectors: Usually monitor movement across rooms, corridors, or entrance areas.

• Ceiling-Mounted Detectors: Often require surrounding coverage across the floor below.

• Narrow-Angle Detectors: Focus detection along selected paths or restricted spaces.

A larger detection angle does not always improve performance. Wider coverage may introduce areas receiving weaker optical signals. Poor mounting positions can also leave important movement paths outside effective detection zones.

For example, a corridor detector should cover people moving through the passage. Its lens pattern should match the corridor's shape and expected movement directions. Always consider detection range alongside mounting height and lens geometry. These factors determine whether the optical system covers the intended location.

How Signal Processing Circuits and Control ICs Interpret Motion

The pyroelectric sensor generates small electrical signals during changing infrared exposure. However, these signals cannot always control external equipment directly. Signal processing circuits and control ICs convert them into reliable detection events.

Amplification, Filtering, and Motion Signal Evaluation

Amplification increases the strength of weak electrical signals from the sensing elements. This allows the detector to evaluate changes that might otherwise remain difficult to identify.

Filtering helps separate useful motion signals from unwanted electrical disturbances. Different filters reduce interference outside the expected motion signal frequency range. Their settings influence how the detector responds to movement speed.

Signal processing circuits commonly perform several operations:

1. Signal Amplification: Increases weak sensor signals for further processing.

2. Noise Filtering: Reduces interference from electrical and environmental disturbances.

3. Threshold Evaluation: Checks whether processed signals meet detection conditions.

4. Motion Event Generation: Produces information for the control circuit.

Detection thresholds require careful adjustment. Very sensitive settings may increase unwanted triggering under difficult conditions. Excessively high thresholds can prevent weaker movement signals from being recognized. A larger signal does not always mean someone is closer. Movement direction, temperature contrast, and optical coverage also influence signal strength.

Control ICs, Trigger Modes, and Output Timing

A control IC determines how the detector responds after identifying possible motion. Depending on its architecture, it may handle amplification, filtering, timing, and output control. Some detector designs allow engineers to adjust sensitivity and output duration. Others use fixed settings to simplify installation and reduce component requirements.

Triggering behavior represents another important consideration. Retriggerable operation can extend an active output when additional motion occurs. Non-retriggerable designs may maintain a fixed output period before accepting another trigger.

For example, automatic lighting often benefits from retriggerable operation. Continued movement can keep the lighting system active during normal use. Alarm systems may require different timing behavior based on their control requirements.

At HaiWang, we offer PIR control ICs, including the HR008, for motion detection circuit development. Our product range also includes other sensing components for different integration requirements.

Choosing suitable control electronics helps engineers match detection behavior to practical applications. The selected IC should support the required electrical characteristics and triggering functions.

How Power Supply and Output Components Complete the Detector

A PIR Motion Detector also requires electrical support beyond its sensing and processing components. Power supply circuits maintain suitable operating conditions during detection. Output interfaces allow the detector to communicate with external equipment.

Power Regulation and Electrical Stability

PIR detection circuits often process very small electrical signals. Their performance can suffer when operating voltage becomes unstable. Power supply design therefore plays an important role in reliable operation.

Voltage regulators maintain suitable supply levels for supported components. Decoupling capacitors help reduce unwanted supply fluctuations. Proper grounding also limits electrical interference entering sensitive signal paths.

Engineers should consider several electrical requirements:

• Operating Voltage: Must remain within the specified range.

• Power Consumption: Should match the available power source.

• Electrical Noise: Must remain low enough for reliable signal processing.

• Startup Behavior: Should allow required stabilization before normal detection.

Battery-powered detectors place greater importance on low energy consumption. They often require efficient circuitry to extend operating life. Externally powered systems may offer greater flexibility in circuit design.

Some modules also require stabilization after power-up. Their outputs may behave differently during this initial period. Designers should verify startup behavior using the selected module's technical documentation.

Output Interfaces and External Device Connections

The output interface transfers detection results to connected equipment. Many PIR modules provide digital signals indicating detected movement. These outputs may connect directly to compatible microcontroller inputs.

However, output voltage and current capacity vary between designs. A sensor module cannot necessarily power a relay or lighting load directly. Additional driver circuits may be required for higher-current equipment.

A simple lighting system demonstrates this relationship. The PIR module sends a detection signal to its control circuit. A suitable driver then switches the lighting load safely.

Security systems may use similar detection signals differently. Their controllers can interpret motion events and activate programmed alarm responses. The output circuit must therefore match the receiving equipment's electrical requirements.

Before integration, engineers should verify output polarity, signal voltage, and current limits. They should also check grounding and interface protection requirements.

How to Evaluate PIR Motion Detector Components for Reliable Performance

Understanding individual components helps explain how detection works. However, choosing suitable parts requires evaluating the complete detection system. The best component combination depends on application requirements and operating conditions.

Match Component Specifications to the Application

Different applications place different demands on motion detection components. Security alarms often prioritize dependable movement detection across protected areas. Automatic lighting systems require suitable coverage and practical triggering behavior.

Battery-powered devices introduce additional power consumption requirements. Their sensing and control circuits must balance responsiveness against energy use.

The following parameters deserve attention during component selection:

• Detection Range: Choose coverage suitable for the intended monitoring distance.

• Detection Angle: Match the lens pattern to the monitored space.

• Sensor Sensitivity: Consider expected movement and background temperature conditions.

• Trigger Duration: Select timing suitable for the connected equipment.

• Power Requirements: Check operating voltage and energy consumption.

• Output Compatibility: Confirm signal levels match the receiving controller.

These parameters should be evaluated together rather than separately. A highly sensitive sensor cannot compensate for an unsuitable lens pattern. Likewise, excellent optical coverage cannot correct unstable power or inappropriate detection thresholds.

For example, a compact hallway lighting controller may prioritize reliable crossing detection. A battery-powered alarm sensor may require lower energy consumption and suitable standby behavior.

At HaiWang, we provide PIR sensors, control ICs, lenses, and detection modules for motion sensing applications. Our PIR Sensor Series includes component options for different integration needs.

Check Component Integration and Detection Reliability

Even correctly selected components can perform poorly after improper installation. Optical alignment, electrical interference, and environmental conditions all affect detection reliability.

A detector installed near heating equipment may experience unwanted infrared changes. Direct sunlight can also create changing thermal conditions within its coverage. Moving warm air may cause similar problems in certain environments.

Testing should therefore reflect realistic operating conditions. Engineers should evaluate movement at different distances and directions. They should also test the system during expected temperature changes.

Practical Component Evaluation Checklist

• Confirm the sensor and Fresnel lens are correctly aligned.

• Verify the supply voltage remains within specified operating limits.

• Test movement across the expected detection zones.

• Check detection response from different movement directions.

• Confirm trigger duration and retriggering behavior.

• Evaluate unwanted triggering near possible heat disturbances.

• Verify output signals remain compatible with connected equipment.

Testing the assembled detector reveals problems that isolated component checks may miss. It also helps identify whether adjustments involve optics, processing, or installation. Reliable performance depends on the complete system meeting its intended requirements. The most suitable configuration is not necessarily the most sensitive one.

Conclusion

A PIR Motion Detector relies on several components working together to detect movement accurately. The pyroelectric sensor detects infrared changes, while the Fresnel lens controls detection coverage. Processing circuits convert these changes into usable motion signals. Reliable performance also depends on stable power, suitable trigger settings, and proper installation. Engineers should evaluate component compatibility and test detectors under realistic operating conditions. At ShenZhen HaiWang Sensor Co.,Ltd., we provide PIR sensors, control ICs, and detection modules for various applications. Our products support flexible integration and reliable motion detection in security systems, smart lighting, and automated devices.

FAQ

Q: What Are the Main Components of a PIR Motion Detector?

A: A PIR Motion Detector includes a pyroelectric sensor, Fresnel lens, signal processing circuit, control IC, power supply, and output interface. These components work together to detect movement and generate signals.

Q: How Does a PIR Motion Detector Detect Human Movement?

A: A PIR Motion Detector senses changes in infrared radiation caused by moving people. Its pyroelectric sensor generates electrical signals, which processing circuits evaluate to identify movement and activate connected devices.

Q: Why Does a PIR Motion Detector Need a Fresnel Lens?

A: A PIR Motion Detector uses a Fresnel lens to focus infrared radiation onto its sensing elements. The lens creates detection zones, improving coverage and helping the sensor recognize movement.

Q: What Is the Difference Between a PIR Sensor and a PIR Detection Module?

A: A PIR sensor detects infrared changes, while a complete detection module includes supporting electronics. These additional components process sensor signals and provide outputs suitable for connected equipment.

Q: Which Components Affect the Cost of a PIR Motion Detector?

A: A PIR Motion Detector costs more or less depending on sensor specifications, lens design, processing electronics, and power requirements. Integrated features and output options also influence component costs.
