What Affects PIR Human Motion Detection Accuracy?

Why does a PIR sensor detect some movements but miss others? Even high sensitivity cannot guarantee accurate detection. PIR Human Motion Detection identifies movement by sensing changes in infrared radiation. However, accuracy depends on more than detection range. Temperature differences, movement direction, lens coverage, and installation conditions all influence sensor performance. Poor configurations can cause missed movements, inconsistent detection distances, and unwanted false alarms. Understanding these factors helps you identify problems and improve detection reliability. Reliable performance comes from matching sensor characteristics to actual operating conditions, not simply increasing sensitivity.

How Do Temperature Differences and Human Movement Affect PIR Detection?

Temperature contrast and movement patterns directly influence how reliably PIR sensors respond to people. Even a properly functioning sensor may miss movement under unfavorable conditions.

The Effect of Human Body Temperature and Ambient Temperature

PIR sensors detect changes in infrared radiation rather than measuring human body temperature directly. They respond when a moving person changes the infrared energy reaching their sensing elements.

Human skin and clothing emit infrared radiation. Their surface temperatures often differ from surrounding walls, furniture, and other objects. These differences help generate detectable signals as someone moves through the monitored area.

However, detection becomes more difficult when a person's surface temperature approaches the background temperature. The resulting infrared change may be too weak for reliable detection.

Several conditions influence this temperature contrast:

• High ambient temperatures: Warm backgrounds can reduce the infrared contrast between people and their surroundings.

• Thick clothing: Insulating materials may lower clothing surface temperatures and reduce detectable thermal differences.

• Background heat: Heated walls, machinery, or other surfaces can create complex infrared patterns.

• Temperature changes: Rapid environmental changes may produce unwanted signals or weaken detection consistency.

For example, a sensor may detect movement reliably in a cool office. The same sensor might perform differently inside a hot warehouse. This does not mean PIR sensors automatically fail in warm environments. Their performance depends on actual surface temperatures, optical coverage, and sensor sensitivity.

How Movement Direction, Speed, and Distance Change Detection Results

Movement direction is another major factor affecting PIR Human Motion Detection accuracy. Most PIR motion detectors use optical zones to monitor changes across their coverage areas. A person walking sideways often crosses several detection zones. This movement produces noticeable changes in infrared radiation reaching the sensing elements. Someone walking directly toward the sensor may cross fewer zones. Consequently, the resulting signal can be weaker or less consistent.

Movement speed also affects detection performance.

• Lateral movement: Walking across detection zones generally produces stronger changing signals.

• Direct approaches: Moving toward the sensor may produce weaker responses under certain coverage patterns.

• Slow movement: Gradual infrared changes may fall below the detection threshold.

• Long distances: Smaller apparent target sizes can reduce signal strength.

• Stationary occupants: People remaining still may not generate sufficient changes for continued detection.

Consider an automatic lighting system installed inside a long corridor. A sensor facing directly along the corridor may detect approaching people less reliably. Adjusting its orientation can improve the response to their movement. The key point is that PIR sensors detect changing infrared patterns, not continuous human presence. This distinction matters when designing occupancy-based control systems.

How Do Detection Range, Viewing Angle, and Lens Design Affect Accuracy?

A sensor's detection range and viewing angle determine its basic coverage area. However, actual detection reliability also depends on optical design and movement direction.

Detection Distance and Coverage Blind Spots

Manufacturers often specify maximum detection distances under particular testing conditions. These values provide useful guidance but cannot guarantee identical performance in every installation. For example, a sensor rated for several meters may detect lateral movement effectively. However, slow movement or reduced temperature contrast can shorten its reliable detection distance.

The viewing angle also affects coverage. A wide-angle sensor monitors a larger area, but coverage may remain uneven.

Common coverage problems include:

• Weak detection near the edges of the monitored area.

• Blind spots between individual infrared detection zones.

• Reduced sensitivity when people move beyond the intended range.

• Inconsistent responses when movement paths poorly match the detection pattern.

A longer detection range does not always provide better performance. The right sensor should cover the required area without excessive unwanted triggering.

Fresnel Lens Design and Detection Zone Distribution

A Fresnel lens plays a critical role in determining PIR detection coverage. It directs infrared radiation from selected areas toward the sensing element. The lens creates distinct detection zones across the monitored environment. As people move between these zones, the sensor receives changing infrared signals.

Lens design influences several important characteristics:

• Zone distribution: The arrangement of detection zones affects sensitivity to different movement paths.

• Viewing angle: Lens geometry determines which areas the sensor can monitor.

• Optical alignment: Incorrect positioning may weaken signals or distort the intended coverage.

• Lens condition: Dirt, physical damage, or unsuitable materials can reduce infrared transmission.

For example, a ceiling-mounted detector requires a different coverage pattern from a wall-mounted detector. A lens designed for one application may create unwanted blind spots in another. The PIR sensing element and lens should therefore work as a matched system. Selecting either component independently can lead to disappointing detection results.

Which Environmental Conditions Cause Missed Detection or False Triggers?

Environmental interference can reduce PIR Human Motion Detection accuracy even when the sensor operates correctly. Understanding potential interference helps distinguish equipment problems from unsuitable installation conditions.

Heat Sources, Sunlight, and Rapid Temperature Changes

PIR sensors respond to changing infrared radiation from objects within their detection fields. They cannot automatically distinguish every thermal change from genuine human movement. Nearby heating equipment, sunlight, and ventilation systems may create changing thermal patterns.

For example, sunlight moving across a wall can change its surface temperature. A sensor observing this area may register an unexpected signal. Air conditioning systems can also affect detection. Moving warm or cool air may change surrounding surface temperatures. These changes can occasionally contribute to false triggering.

Several environmental conditions deserve attention:

• Direct sunlight: Rapidly changing sunlight exposure can affect background temperatures.

• Heating equipment: Changing surface temperatures may create unwanted infrared signals.

• Ventilation outlets: Moving air can alter nearby surface temperatures and thermal patterns.

• Warm industrial environments: Reduced temperature contrast may weaken human movement detection.

Not every nearby heat source will trigger a PIR sensor. Stationary objects at stable temperatures generally produce little changing signal. The greater concern involves thermal patterns that change within the detection area.

Physical Obstructions and Unstable Installation Environments

Physical barriers can prevent infrared radiation from reaching the sensing element. Furniture, walls, and partitions may therefore create significant blind spots. Ordinary glass is another important consideration. It blocks much of the long-wave infrared radiation used by typical PIR detectors.

As a result, a standard PIR detector usually cannot reliably detect people through closed glass windows. Installation conditions also influence performance. Moving curtains near warm surfaces can create changing thermal patterns. Loose mounting hardware may produce unstable coverage when the detector moves.

Outdoor installations introduce additional challenges. Sunlight, changing surface temperatures, and weather exposure can affect detection consistency. These problems often require changes in positioning or environmental protection. Increasing sensitivity alone rarely provides a complete solution.

How Do PIR Sensor Sensitivity and Circuit Settings Influence Detection Accuracy?

Sensor sensitivity and electronic configuration determine how infrared signals become detection events. Incorrect settings can cause missed movement, false alarms, or confusing output behavior.

Sensitivity Thresholds and the Balance Between Missed Events and False Alarms

Sensitivity determines how easily a PIR detector responds to changing infrared signals. Higher sensitivity allows some smaller signal changes to trigger detection. This can improve performance for weak movement or distant targets. However, excessive sensitivity may increase unwanted triggering from environmental interference.

Lower sensitivity can reject some unwanted signals. Unfortunately, it may also cause the sensor to miss genuine movement. The correct setting depends on the application. Security systems often require reliable detection across defined entry routes. Automatic lighting systems may prioritize comfortable activation while limiting unnecessary switching.

For example, increasing sensitivity could help detect slower movement near a doorway. The same adjustment might produce unwanted responses near changing thermal backgrounds. The goal is not maximum sensitivity, but reliable detection under actual operating conditions. Test several sensitivity settings before choosing the final configuration. Compare missed detections against unwanted triggers rather than judging sensitivity alone.

Signal Processing, Trigger Modes, and Power Stability

PIR detection modules contain electronic circuits that process signals from their sensing elements. These circuits may amplify, filter, and evaluate changing infrared signals. Signal processing helps separate meaningful movement patterns from electrical noise. However, inappropriate settings can affect detection reliability. Trigger timing also deserves attention. Some modules hold their output active for a specified period. Others support retriggering when additional movement occurs.

These operating behaviors can create apparent detection problems. For example, a module may keep its output active after detecting movement. New movement during this period may not produce another visible output transition. Power supply stability is equally important. Electrical noise or unsuitable supply voltage can affect sensor operation. Before changing circuit settings, check the module's technical specifications. Verify its operating voltage, output behavior, startup requirements, and available adjustments.

The following table summarizes common factors and practical improvements.

How Can Sensor Placement and Installation Improve Human Motion Detection Accuracy?

Correct installation can significantly improve detection reliability without changing the sensing hardware. The main objective is matching detection coverage to expected human movement.

Mounting height affects the monitored area and detection zone distribution. Installing a sensor too high or too low may create unwanted blind spots. Orientation is equally important. Positioning the sensor across expected walking paths often improves detection compared with direct approaches.

Different applications require different installation strategies:

• Security entrances: Position detectors to monitor expected entry paths and crossing movement.

• Corridors: Consider wall positioning and detection patterns that capture lateral movement.

• Automatic lighting: Cover common walking routes while minimizing unwanted responses.

• Office spaces: Account for furniture, partitions, and limited occupant movement.

• Outdoor areas: Protect detectors from unsuitable weather exposure and unstable thermal backgrounds.

Sensor selection should also reflect the intended application. Range, optical coverage, electrical requirements, and output behavior all influence system performance. At HaiWang, we offer a PIR Sensor Series covering sensing elements, modules, control ICs, and lens options. We support applications involving security monitoring, automatic lighting, and energy-saving equipment.

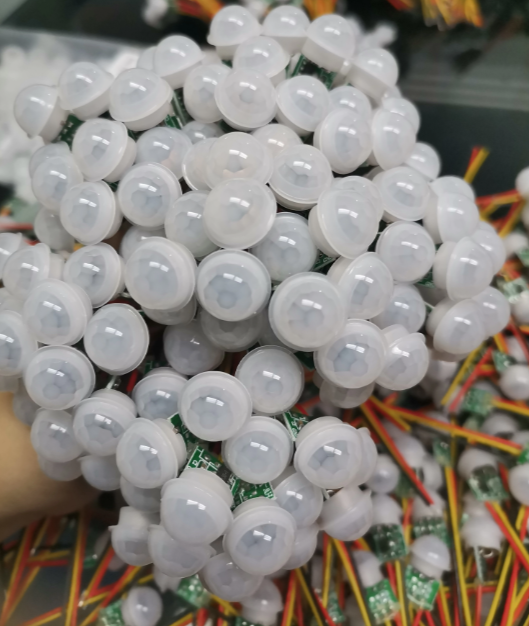

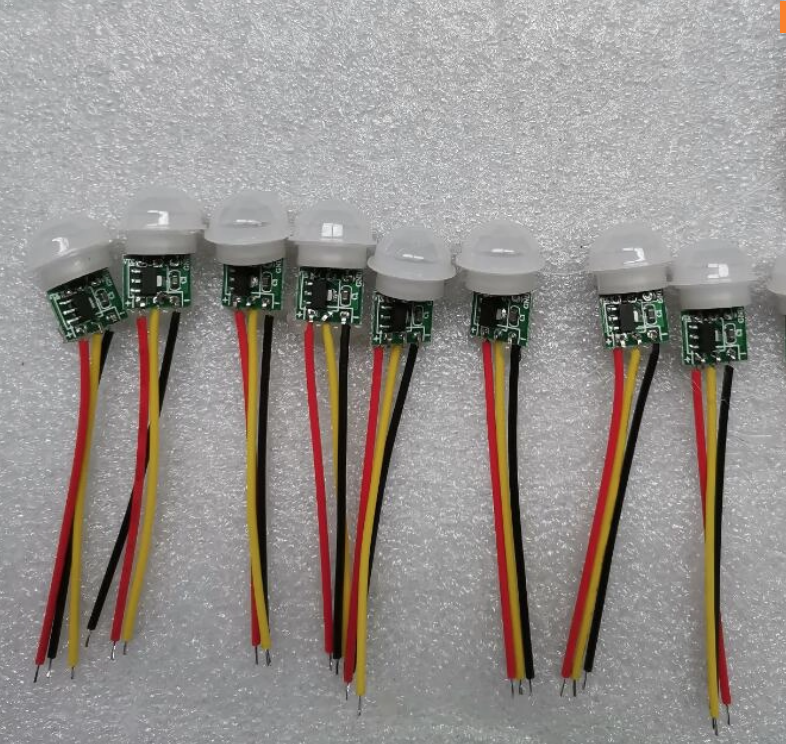

For example, our product range includes modules intended for different detection distances and control requirements. These options help designers evaluate suitable configurations for specific projects. However, product selection should never replace practical installation testing. Actual coverage must be verified after the sensor reaches its final mounting position.

How Can You Test and Troubleshoot PIR Detection Accuracy?

Systematic testing helps identify the actual causes of unreliable motion detection. It also prevents unnecessary component replacement or excessive sensitivity adjustments.

A Practical Method for Measuring Detection Reliability

Begin testing only after the sensor completes its required startup stabilization period. The necessary time depends on the specific module and operating conditions. Next, establish repeatable walking paths across the detection area. Keep movement speed, distance, and environmental conditions reasonably consistent.

A practical test procedure includes these steps:

1. Check the setup: Confirm supply voltage, mounting position, lens condition, and output behavior.

2. Test lateral movement: Walk across the detection zones at several distances.

3. Test direct approaches: Move toward the sensor and compare detection results.

4. Evaluate slow movement: Repeat tests using slower walking speeds and smaller movements.

5. Record missed events: Count unsuccessful detections during repeated trials.

6. Monitor false triggers: Observe output behavior when no intended human movement occurs.

7. Repeat environmental tests: Evaluate performance under representative temperature and lighting conditions.

Detection rate provides a useful performance indicator.

Detection Rate = Successful Detection Trials ÷ Total Detection Trials × 100% For example, 47 successful detections across 50 trials produce a 94% detection rate. [Illustrative data; actual performance requires verification.]

However, this measurement alone cannot describe complete system reliability. False-trigger frequency must also be evaluated during periods without intended movement. Record test conditions alongside results. This makes comparisons between different configurations more meaningful.

Diagnosing Common PIR Detection Problems

Different detection problems often indicate different underlying causes. Identifying the symptom helps narrow the troubleshooting process.

1. Missed Human Movement

Check sensing distance, temperature contrast, and movement direction. Inspect possible obstructions and confirm the sensor covers the intended path.

2. Frequent False Alarms

Look for changing thermal backgrounds, nearby heating equipment, and unstable environmental conditions. Review sensitivity settings before assuming the sensing element is defective.

3. Inconsistent Detection Distance

Verify lens alignment and sensor orientation. Repeat measurements under comparable temperature conditions and movement patterns.

4. Delayed or Missing Output Events

Check output hold time, retrigger behavior, and startup stabilization requirements. Confirm the power supply meets the module's specifications.

5. Detection Works Only From Certain Directions

Examine the optical coverage pattern and expected movement paths. Reposition the detector when its detection zones poorly match human movement.

Change one variable at a time during troubleshooting. Otherwise, identifying the cause of improvement becomes difficult. A simple adjustment to positioning may solve a coverage problem. Other situations require a different lens, sensor module, or circuit configuration. The most reliable approach combines controlled testing, accurate diagnosis, and application-specific adjustments.

Conclusion

Accurate PIR Human Motion Detection depends on temperature contrast, human movement, lens coverage, and environmental conditions. Higher sensitivity or longer detection ranges alone cannot guarantee reliable performance. Proper sensor placement, suitable lens selection, and controlled testing help improve detection accuracy. Evaluating missed movements and false alarms also helps identify potential problems. At ShenZhen HaiWang Sensor Co.,Ltd., we offer PIR sensors and sensing solutions for various applications. Our products provide flexible detection options for security systems, smart lighting, and energy-saving devices. By matching sensor configurations to actual operating conditions, we help customers achieve more reliable motion detection.

FAQ

Q: What Factors Affect PIR Human Motion Detection Accuracy?

A: PIR Human Motion Detection accuracy depends on temperature contrast, movement direction, detection distance, lens design, and sensor placement. Proper configuration and stable environmental conditions help reduce missed movements and false alarms.

Q: Why Does PIR Human Motion Detection Become Less Accurate in Hot Environments?

A: PIR Human Motion Detection relies on infrared differences between people and their surroundings. High temperatures reduce this contrast, making movement harder to detect and potentially shortening the effective detection range.

Q: How Can I Improve PIR Human Motion Detection Accuracy?

A: Improving PIR Human Motion Detection requires proper sensor positioning, suitable lens coverage, and balanced sensitivity settings. Test different movement directions and distances to identify blind spots and improve reliability.

Q: Why Does My PIR Motion Sensor Trigger Without Human Movement?

A: PIR motion sensor false triggers can result from changing sunlight, heating equipment, airflow, or unstable power supplies. Check nearby heat sources and adjust sensitivity to reduce unwanted activation.

Q: Can PIR Sensors Detect People Who Are Standing Still?

A: PIR sensors detect changes in infrared radiation rather than continuous human presence. Stationary people may not generate sufficient signal changes, making PIR sensors less reliable for detecting motionless occupants.
