PIR Flame Sensor vs. UV/IR Flame Detector: Key Differences

Can a single second determine the fate of your facility? When fire strikes, your detection technology is the only barrier against disaster. This guide compares the PIR Flame Sensor and the UV/IR Flame Detector to reveal which offers the best protection. You will learn about their technical mechanics, environmental suitability, and cost-effectiveness to help you secure your site.



Key Takeaways

● Technology Split: PIR sensors detect single-band infrared flickers, while UV/IR detectors combine ultraviolet and infrared sensors for dual-layer verification.

● False Alarm Immunity: UV/IR models offer significantly higher resistance to "nuisance" triggers like sunlight or welding compared to standard PIR units.

● Response Speed: Both provide rapid alerts, but UV/IR technology reduces delay by confirming fire signatures across two distinct light spectrums simultaneously.

● Best Use Cases: Use PIR for cost-effective, indoor-controlled spaces; choose UV/IR for high-risk industrial zones like oil rigs or chemical plants.

● Investment Value: While UV/IR units have a higher upfront cost, their lower false alarm rate often results in a better long-term total cost of ownership (TCO).

Technical Comparison: How PIR and UV/IR Technologies Detect Fire

Understanding the physics behind fire detection is the first step in choosing the right hardware. A Flame Sensor does not actually "see" a fire the way a human eye does; instead, it processes specific wavelengths of light emitted by the combustion process.

Understanding Passive Infrared (PIR) Flame Sensor Mechanics

A Passive Infrared (PIR) Flame Sensor monitors the infrared radiation emitted by heated gases. Specifically, it looks for the unique "flicker" frequency of a flame, usually between 1 to 20 Hz. It detects the carbon dioxide emission peak at approximately 4.35 microns. Because it is "passive," it does not emit signals but stays alert for thermal energy changes in its environment.

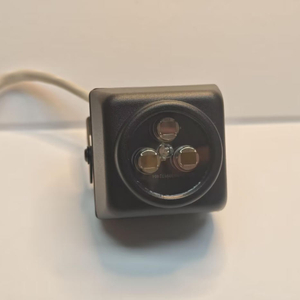

The Dual-Spectrum Approach of UV/IR Flame Detectors

The UV/IR Flame Detector utilizes two sensors working in tandem. One sensor detects Ultraviolet (UV) radiation (typically in the 185 to 260-nanometer range), while the other monitors the Infrared (IR) spectrum. A fire must trigger both sensors simultaneously for the device to signal an alarm. This "AND" logic gate acts as a powerful filter against environmental interference.

Signal Processing: Analyzing Flicker Frequency vs. Spectral Matching

Modern systems use advanced algorithms to distinguish a real fire from a hot motor or a spinning fan. PIR units rely heavily on the pulse or flicker of the light. In contrast, UV/IR units compare the intensity ratios between the UV and IR bands. If the ratio matches the known profile of a hydrocarbon fire, the system activates.

Sensitivity Thresholds and Response Times

Most industrial-grade detectors respond in under 5 seconds. However, sensitivity varies based on distance. A high-end UV/IR Flame Detector can often spot a 1-foot square fire from 50 to 100 feet away. PIR sensors may require closer proximity or a larger fire size to achieve the same reliability in noisy thermal environments.

Detection Range and Field of View (FOV) Capabilities

The Field of View (FOV) determines how much "ground" a single device can cover. Typical detectors offer a 90° to 120° horizontal FOV. Because UV/IR units are more precise, they often maintain their accuracy at the edges of this FOV better than basic PIR sensors, which may suffer from "edge blurring" where heat signatures become less distinct.

The Role of Optical Filters in Minimizing Interference

To prevent false triggers from sunlight or artificial lighting, manufacturers install specialized optical filters. These filters only allow specific narrow bands of light to reach the sensor. In a UV/IR Flame Detector, the UV filter is particularly crucial for blocking solar radiation that penetrates the atmosphere (the "solar blind" region).

Sensor Longevity and Performance Degradation Factors

Environment affects how long these sensors last. UV sensors can "age" over time if exposed to constant high-intensity background radiation. IR sensors are generally more rugged but can be blinded by thick oil films or heavy dust on the lens. Regular self-testing features (built-in-test or BIT) are vital for monitoring this degradation.



The Core Differences in Detection Spectrums

The fundamental gap between these two systems lies in the wavelengths they monitor. This technical distinction dictates where they succeed and where they fail.

Single-Band IR vs. Multi-Spectrum UV/IR Monitoring

A single-band IR Flame Sensor is focused solely on the heat signature. While effective, it lacks a second opinion. A UV/IR system adds the ultraviolet component, which is produced early in the combustion process. This makes the UV/IR unit much faster at identifying fires that produce little heat but high light intensity.

Why UV/IR Detectors Offer Superior "Double-Check" Verification

The double-check mechanism is the "gold standard" for high-stakes safety. By requiring two different physical phenomena—heat and light—to occur at the exact same time and location, the UV/IR Flame Detector nearly eliminates the risk of an alarm caused by a stray heat source or a non-fire light flash.

The Vulnerability of PIR Flame Sensors to Background Heat Sources

In a factory with heavy machinery or ovens, the background IR levels are high. A PIR sensor might struggle to differentiate between the CO₂ spike of a fire and the intense radiant heat of a nearby furnace. This can lead to decreased sensitivity as the "background noise" drowns out the fire signal.

Radiation Absorption: How Smoke and Vapor Affect Signal Strength

Smoke is a major factor in detection. IR radiation penetrates smoke quite well, making PIR sensors reliable in "dirty" fires. However, UV radiation is easily scattered by smoke particles. In a very smoky environment, the UV sensor in a UV/IR Flame Detector might be blinded, delaying the alarm until the IR sensor takes over or the smoke clears slightly.



False Alarm Immunity: A Critical Performance Metric

False alarms lead to costly downtime. Understanding how each Flame Detector handles non-fire stimuli is essential for industrial efficiency.

Common PIR Triggers: Sunlight, Heaters, and Artificial Lighting

Sunlight contains a massive amount of IR energy. Even with filters, a PIR Flame Sensor can be tricked by sunlight reflecting off a moving metallic surface (like a fan blade), which mimics the "flicker" of a fire. Space heaters and high-intensity halogen lamps are also common culprits that can trigger a low-quality PIR sensor.

How UV/IR Systems Filter Out Arc Welding and Lightning

Arc welding produces intense UV and IR light. However, the UV/IR Flame Detector uses sophisticated timing and ratio analysis. It recognizes that the UV-to-IR ratio of a welding arc is different from that of a hydrocarbon flame. Similarly, the brief "pop" of lightning is usually too fast to trigger the integration timers in a professional Flame Detector.

Managing "Black Body Radiation" in High-Temperature Environments

Black body radiation is the light emitted by an object because of its temperature. In molten metal facilities, everything glows. A UV/IR detector is much better suited here because molten metal emits very little UV radiation compared to the amount of IR it produces. The UV sensor remains "quiet," preventing a false alarm from the hot metal.

The Impact of Modern Digital Signal Processing (DSP) on Accuracy

Modern devices use DSP to "clean" the incoming signal. Instead of just looking at brightness, they analyze the waveform. They can tell the difference between the chaotic rhythm of a fire and the steady 60Hz hum of a lightbulb. This processing power has made even entry-level Flame Sensor units much more reliable than they were a decade ago.



Application-Specific Suitability: Choosing the Right Environment

Not every Flame Sensor is built for every job. This section matches the hardware to the hazard.

Best Use Cases for PIR: Indoor, Controlled Environments

If you are protecting an indoor warehouse with stable temperatures and no heavy machinery, a PIR Flame Sensor is an excellent, cost-effective choice. It works well in environments like paper storage, clean manufacturing, or retail backrooms where the main threat is a slow-smoldering fire.

Why UV/IR Flame Detectors Dominate Oil, Gas, and Chemical Processing

In environments where explosive gases or fuels are present, you cannot afford a mistake. The UV/IR Flame Detector is the standard for refineries, fuel loading racks, and offshore platforms. Its ability to ignore sunlight and welding while spotting a fuel fire in milliseconds makes it indispensable for these high-hazard zones.

Outdoor Performance: Handling Wind, Dust, and Solar Interference

Outdoor detection is notoriously difficult. Wind can dissipate heat, and the sun is a constant source of IR. A UV/IR unit is typically the only viable option for outdoor protection. Most are housed in rugged, weather-proof enclosures (IP66/67) to withstand rain, salt spray, and extreme temperatures.

Specialized Protection for Hydrogen and Hydrocarbon-Based Fires

Different fuels burn at different wavelengths. Most IR-based detectors are tuned for CO₂ emissions (4.35μm). However, a hydrogen fire produces water vapor (H₂O) instead of CO₂. In these cases, you need a specialized Flame Detector that monitors the 2.7μm range or uses a wide-band UV sensor to catch the flame's unique spectral signature.



Installation and Operational Constraints

Successful deployment of a Flame Detector depends on understanding its physical and environmental limitations.

Line-of-Sight Requirements and Obstruction Management

Optical detectors require a clear line of sight. They cannot see through walls, large crates, or thick veils of oil on the lens. When mapping out your installation, you must ensure that the Flame Sensor has a "cone of vision" that covers all potential ignition points without being blocked by moving equipment.

Power Consumption and Integration with Fire Alarm Control Panels (FACP)

Most industrial detectors run on 24V DC. They typically offer multiple output options, including 4-20mA analog signals, RS-485 Modbus, or simple relay contacts. Integrating a UV/IR Flame Detector into your FACP allows for automated responses, such as shutting down fuel valves or activating suppression systems.

Area Coverage: Calculating the Number of Detectors Needed for Large Zones

Because light intensity drops with distance (following the inverse-square law), you must carefully calculate coverage. A common mistake is using too few sensors. Overlapping the FOV of two different Flame Detector units ensures that there are no "blind spots" behind large pieces of machinery.



Cost-Benefit Analysis: Initial Investment vs. Long-Term Value

While price is always a factor, the "cheapest" Flame Sensor might become the most expensive due to maintenance or failure.

Comparing the Upfront Procurement Costs of PIR and UV/IR Units

Generally, a PIR Flame Sensor is significantly more affordable—often 30% to 50% cheaper than a UV/IR counterpart. For low-risk, small-scale applications, this saves budget. However, for industrial sites, the hardware cost is usually a small fraction of the total safety budget.

Maintenance Cycles: Cleaning Lenses and Performing Function Tests

Both types require regular lens cleaning. If the window is dirty, the sensor is blind. Many high-end UV/IR Flame Detector models include an "Internal Self-Test" that checks the window clarity automatically and triggers a "Fault" light if it needs cleaning, reducing the need for manual inspections.

The Cost of False Alarms: Productivity Losses vs. Safety Gains

One false discharge of a CO₂ or FM-200 suppression system can cost more than five UV/IR detectors. By choosing a more "intelligent" Flame Detector, you are buying insurance against accidental triggers that shut down your entire production line.

Evaluating the Total Cost of Ownership (TCO) Over a 10-Year Lifecycle

When you factor in maintenance, the frequency of false alarms, and the expected lifespan, the UV/IR system often wins on TCO. They tend to be built with higher-grade materials designed for 10-15 years of service in harsh conditions, whereas cheaper PIR sensors may need more frequent replacement.



Regulatory Compliance and Industry Standards

Meeting safety codes is non-negotiable. Ensure your chosen Flame Detector meets the necessary certifications.

Understanding FM Global and UL Approval Standards

FM Global and Underwriters Laboratories (UL) provide the most recognized testing for fire equipment. A Flame Sensor with these marks has undergone rigorous testing to prove it can detect specific fire sizes at specific distances without failing.

SIL (Safety Integrity Level) Ratings for High-Risk Industrial Sites

For functional safety, SIL ratings (like SIL 2 or SIL 3) are crucial. This rating tells you the mathematical probability that the Flame Detector will perform its job when called upon. In the oil and gas industry, SIL 2 is often the minimum requirement.

ATEX and IECEx Certifications for Hazardous Areas

If you operate in Europe or internationally, ATEX and IECEx certifications are mandatory for equipment used in explosive atmospheres. These ensure the Flame Sensor housing and electronics meet global safety benchmarks for hazardous locations.



Conclusion

Choosing the right technology involves balancing site-specific risks with your available budget. A PIR Flame Sensor offers a dependable and economical solution for indoor environments where environmental "noise" is low. However, for complex industrial applications, the UV/IR Flame Detector provides the superior false alarm immunity and dual-spectrum verification needed to protect lives and assets. For high-quality sensing components, ShenZhen HaiWang provides reliable technology designed to meet diverse safety needs. Their products help ensure your facility remains secure by offering precise detection capabilities. We recommend evaluating your specific environmental hazards to select the device that offers the best long-term value and protection.



FAQS

Q: What is the main difference between a PIR Flame Sensor and a UV/IR Flame Detector?

A: A PIR Flame Sensor uses only infrared light to detect heat flickers, while a UV/IR Flame Detector uses both ultraviolet and infrared sensors to confirm a fire.

Q: Why should I choose a UV/IR Flame Detector for outdoor use?

A: The UV/IR Flame Detector is "solar blind," meaning it ignores sunlight that often causes false alarms in single-sensor systems.

Q: Can a Flame Sensor see through glass or windows?

A: Most Flame Detector units cannot see through standard glass because it blocks the specific UV or IR wavelengths needed for detection.

Q: How often should I test my Flame Detector?

A: You should perform a functional test on your Flame Detector at least every six months to ensure the lens is clear and the sensors are active.
