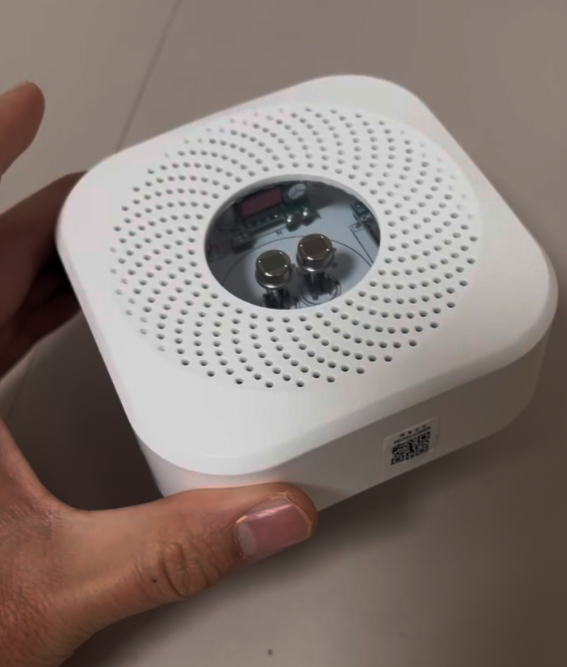

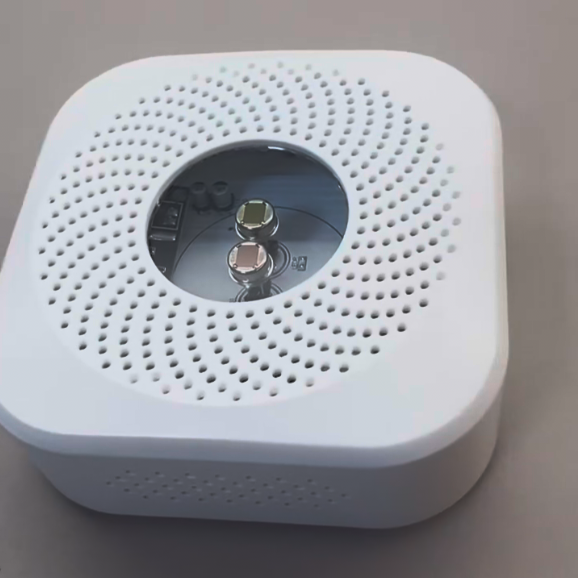

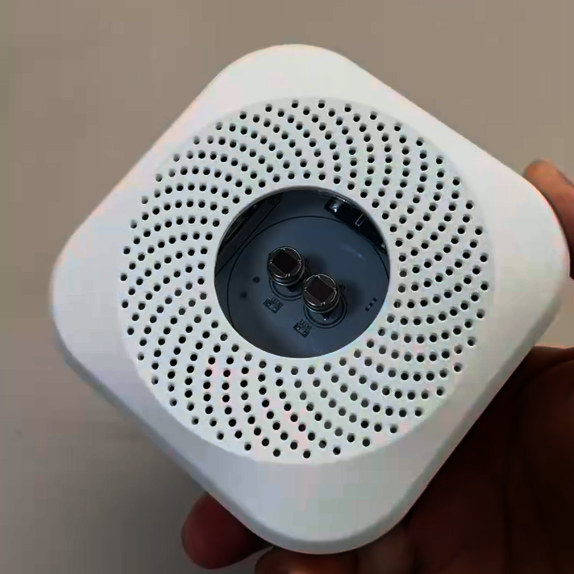

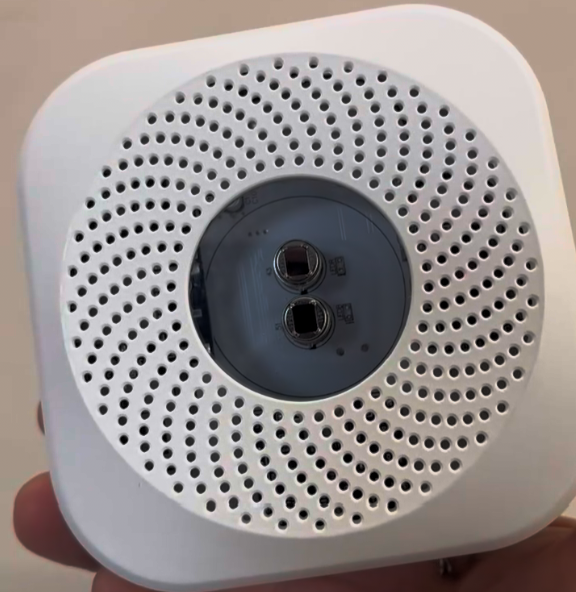

HW-F210-E Ceiling-Mounted Fire Alarm

The HW-F210-E is an English-language civilian fire alarm. It uses a dual-band infrared and thermal radiation sensing method, employing lithium thallium crystal material with a Curie temperature range of 250-4000℃. For fire early warning, it exhibits a clear high-contrast polarity change due to temperature differences. The detector is stable and can quickly detect and trigger an alarm within 10 seconds of a fire. The product can be set up by scanning a QR code with a mobile phone. It is suitable for various open flame detection fire early warning applications: fire alarm, security alarm, industrial plants, mining areas, chemical combustible material alarm, residential homes, charging piles, gas stations, chargers, equipment, etc.

Model:
HW-F210-E

Availability:

Quantity:



Inquire Add to Basket

Ceiling-Mounted Fire Alarm Flame Detector Fire Alarm Detector Alarm Siren/Speaker Flame Alarm alarm Emergency Voice System Flame alarm Detector flame alarm Fire sensor fire sensor alarm

Product Description

I. Fire Alarm User Manual

The HW-F210-E is an English-language civilian fire alarm. It uses a dual-band infrared and thermal radiation sensing method, employing lithium thallium crystal material with a Curie temperature range of 250-4000℃. For fire early warning, it exhibits a clear high-contrast polarity change due to temperature differences. The detector is stable and can quickly detect and trigger an alarm within 10 seconds of a fire. The product can be set up by scanning a QR code with a mobile phone. It is suitable for various open flame detection fire early warning applications: fire alarm, security alarm, industrial plants, mining areas, chemical combustible material alarm, residential homes, charging piles, gas stations, chargers, equipment, etc.

II. Setup Instructions

1. Use a 220V lead wire for power supply and wiring. It is installed indoors in a fire escape corridor using a ceiling-mounted detection method.

2. Wait for the fire alarm to self-test and power on: Welcome to Haiwang Fire Alarm. Please place this product according to the instructions. This product is for fire detection; please install it ceiling-mounted with a downward view.

3. The product detects a fire: Fire alarm! Fire alarm! Please have the relevant personnel handle this as soon as possible;

4. Dual-speaker voice broadcast, louder sound;

5. Enters sentry mode after the power-on voice message ends.

III. Parameter Specifications:

Model	F210-E		Flame alarm
Power supply	85v-250v		220v
Work indicator light	Blue: The indicator light shows normal operation. Red: Alarm indicator light.
Power consumption	＜3w
Sensing distance	1-30m	The larger the fire, the faster the detection
Fire alarm threshold	300mmx300mm	Area fire flame, size alarm threshold
Sensor	43----51	Dual-band flame detection
Output signal	WeChat pop-up	Telephone dialing	Phone text messages
network	5G/4G
Supported by operators	China Telecom	China Mobile	China Unicom
Blackbody threshold	500k	1HZ 0.3-3BPS	default500K
Fire alarm sending time	5s-10s	Fire alarm held for 30s	Repeatable triggering
Sensing angle	10-110°		Window angle
Sensor probe wavelength	380-750nm
Metal casing accessories	host x 1pcs	Fixed plate x 1pcs
Product Dimensions	Length 100mm x width 100mm	thickness 35mm
Operating temperature	-20----+70

IV. Sensing Time:

The fire alarm detection time is determined by the fire alarm's detection time. When the triggering conditions are met, the fire will continue to output a trigger signal as long as the fire is extinguished. The red LED indicator will remain constantly lit. When the flames disappear, the flame sensor source will reset approximately 30 seconds later, returning to sentinel detection mode. This sensing time is determined when a fire occurs.
