How To Choose A Pyroelectric Infrared Sensor for Automatic Lighting?

Automatic lights should respond quickly when someone enters a dark corridor or stairway. Poor motion detection can leave people waiting or waste electricity. A Pyroelectric Infrared Sensor detects changes in infrared radiation caused by human movement. It sends signals that allow lighting systems to switch on automatically. However, choosing the wrong sensor can cause missed movements, delayed activation, or frequent false triggers. Electrical incompatibility can also affect system performance. Selecting the right sensor requires careful attention to detection range, sensitivity, and lighting control requirements. Installation conditions and electrical compatibility are equally important. This guide explains the key selection factors and helps you choose a reliable sensor for automatic lighting.

Which Pyroelectric Infrared Sensor Is Best for Your Lighting Application?

Different lighting applications require different detection capabilities. A sensor designed for a narrow corridor may perform poorly in a large room. Before comparing specifications, consider where people move and how the lights should respond.

Choosing Sensors for Corridors, Stairways, and Entrance Lighting

Corridors and stairways require quick detection because people usually move through them without stopping. The sensor should activate lighting before someone reaches a dark or potentially dangerous area. Reliable coverage matters more than detecting movement across an unnecessarily large distance.

For corridor lighting, consider these requirements:

• Detection direction: Position the sensor to capture movement across its detection zones whenever possible.

• Detection distance: Choose sufficient coverage for the walking route without extending into unrelated areas.

• Response time: The lighting controller should respond promptly after receiving a valid detection signal.

• Retriggering: Continued movement should maintain lighting until people leave the monitored area.

Stairway lighting requires additional attention to sensor placement. People should trigger the lights before entering the steps, especially near landings. Entrance lighting may also need coverage extending slightly beyond the doorway.

Selecting Sensors for Rooms, Cabinets, and Outdoor Lighting

Rooms have different requirements because occupants may remain inside for extended periods. A suitable Pyroelectric Infrared Sensor should detect movement throughout the intended activity area. However, conventional PIR sensors cannot reliably detect completely stationary occupants.

Cabinets and compact spaces usually need shorter detection distances and more controlled coverage. Excessive sensitivity may trigger nearby lighting through unwanted detection zones.

Outdoor lighting introduces further challenges, including changing temperatures, sunlight exposure, and environmental interference. It requires suitable enclosure protection and careful sensor positioning.

The following comparison provides a practical starting point.

These differences show why maximum detection distance should never be the only selection factor.

What Detection Specifications Matter Most When Choosing a PIR Sensor?

After identifying your application, review the technical specifications. They determine how effectively the sensor detects movement and communicates with the lighting controller. Three areas deserve particular attention: detection coverage, signal sensitivity, and electrical compatibility.

Detection Distance, Angle, and Fresnel Lens Coverage

Detection distance describes how far a sensor can recognize suitable infrared changes under specified conditions. A longer range may benefit spacious areas but create unwanted activation in compact installations.

Detection angle determines how widely the sensor monitors its surroundings. Narrow coverage can suit passageways, while wider coverage may better serve open rooms.

However, these specifications depend heavily on the Fresnel lens. A Fresnel lens divides the monitored area into multiple detection zones. Human movement across these zones creates changing infrared signals for the sensing element. Lens geometry therefore affects both detection coverage and sensitivity patterns.

When comparing specifications, consider:

• Detection distance: Match the effective range to the intended walking area.

• Detection angle: Select coverage suitable for the room layout.

• Lens configuration: Confirm the expected detection pattern under actual mounting conditions.

• Installation height: Check whether the published specifications apply to your planned mounting position.

A sensor advertised for long-range detection may still leave blind spots near walls. Always evaluate its complete coverage pattern rather than relying on distance alone.

Sensitivity, Response Time, and Motion Detection Reliability

Sensitivity determines how readily a sensor responds to changing infrared signals. Higher sensitivity can improve detection of smaller movements or more distant targets.

However, excessive sensitivity may increase unwanted activations under difficult environmental conditions. For automatic lighting, consistent detection is generally more useful than maximum sensitivity.

Response time also affects everyday convenience. If lighting activates too slowly, users may enter dark areas before illumination begins. Actual response depends on signal processing, controller behavior, and lighting hardware.

Another important limitation concerns stationary occupants. PIR technology detects changes in infrared radiation rather than continuously measuring human presence. Someone sitting almost motionless may eventually stop producing detectable signals.

Therefore, applications requiring reliable stationary occupancy detection may need additional sensing methods. Increasing PIR sensitivity alone cannot eliminate this limitation.

Operating Voltage, Power Consumption, and Output Compatibility

Electrical compatibility determines whether the sensor can operate correctly inside the lighting system. Start by checking its supported operating voltage. The sensor supply must remain within the manufacturer's specified range during normal operation.

Power consumption also deserves attention, especially in battery-powered or energy-saving applications. Low standby current helps reduce the energy used while the system waits for movement.

Check these electrical characteristics before purchasing:

• Operating voltage: Confirm compatibility with the available power supply.

• Standby current: Evaluate its contribution to total system energy consumption.

• Output signal: Verify voltage levels and logic requirements.

• Interface compatibility: Ensure the controller can interpret the sensor output.

• Switching arrangement: Determine whether additional circuitry must control the lighting load.

A PIR sensing module typically produces a control signal rather than directly powering a lamp. Therefore, lighting systems often need a suitable driver, relay, or switching circuit. Never assume a sensor output can directly operate an LED load. Check the complete electrical design before connecting components.

How Should Detection Delay and Light Activation Be Configured?

Choosing suitable detection specifications is only part of the process. The lighting controller must also respond appropriately after detecting movement. Delay settings, retriggering behavior, and ambient light control determine the final user experience.

Selecting the Right Delay Time and Retriggering Mode

Detection delay controls how long the lights remain activated after the system's last recognized movement. Shorter delays can reduce unnecessary lighting in areas people pass through quickly. Longer delays may improve comfort in rooms where occupants remain for several minutes.

Consider these practical differences:

• Corridors: Shorter delays may work because occupants rarely remain stationary.

• Stairways: Sufficient lighting duration should cover the complete walking route.

• Bathrooms: Longer delays can reduce unwanted switch-offs during limited movement.

• Storage areas: Moderate delays can balance convenience and energy savings.

Retriggering behavior is equally important. A retriggerable configuration extends the active period when additional movement is detected. A non-retriggerable configuration may follow a fixed timing cycle before accepting another trigger. This behavior can create unwanted interruptions in certain lighting applications.

Check whether timing adjustments occur inside the sensor module or through an external controller. Some modules provide fixed internal timing settings. Others require external software or circuit adjustments for different lighting durations.

Combining Motion Detection With Ambient Light Control

Motion detection alone cannot determine whether artificial lighting is necessary. During daylight, a PIR sensor may detect movement even when natural illumination is sufficient. This can waste electricity and cause unnecessary switching. An ambient light sensor helps prevent this problem. Common options include light-dependent resistors and other brightness-sensing components.

The controller can combine two conditions before activating the lights:

1. The measured ambient brightness falls below the selected threshold.

2. The PIR sensing system recognizes valid movement inside its coverage area.

Both conditions must be satisfied before the controller switches on the lighting. However, brightness thresholds need careful configuration. Small changes near the threshold can otherwise cause repeated switching. Using suitable hysteresis or control logic helps maintain stable operation. It also prevents frequent activation changes during passing clouds or fluctuating daylight.

How Do Installation Conditions Affect PIR Sensor Performance?

Even a correctly selected Pyroelectric Infrared Sensor may perform poorly after improper installation. Its position, orientation, and surrounding environment directly influence detection reliability. Planning the installation early helps avoid unnecessary adjustments after the lighting system becomes operational.

Mounting Position and Human Movement Direction

PIR sensors generally respond better when people move across detection zones. Movement directly toward a sensor may produce weaker signal changes under comparable conditions. This difference makes sensor orientation particularly important.

For example, a corridor sensor facing directly along the walking route may respond differently from one monitoring lateral movement. The final result depends on its lens pattern and mounting position.

Follow these installation principles:

• Mounting height: Follow the specified height range for the selected sensor and lens.

• Detection direction: Favor movement across detection zones where practical.

• Physical obstructions: Avoid furniture, partitions, or other objects blocking the monitored area.

• Coverage boundaries: Prevent detection zones from extending unnecessarily into neighboring spaces.

Installation height also changes the effective detection footprint. Raising or lowering a sensor can shift its coverage zones and create blind spots. Test the completed assembly rather than evaluating the exposed sensing element alone.

Avoiding False Triggers From Heat and Environmental Interference

Environmental conditions can produce infrared changes unrelated to intended human movement. Direct sunlight, heating equipment, and moving warm objects may affect detection reliability. Air-conditioning systems can also create temperature changes across monitored surfaces.

Potential interference sources include:

• Heating vents directing warm airflow into detection zones.

• Direct sunlight producing rapid temperature changes.

• Moving animals or objects displaying different surface temperatures.

• Strong airflow affecting nearby surfaces and thermal conditions.

• Outdoor temperature changes reducing the contrast between people and their surroundings.

Ordinary glass creates another important limitation. It blocks much of the long-wave infrared radiation used by conventional PIR sensing elements. Therefore, installing a sensor behind ordinary window glass can prevent reliable detection beyond the window.

Outdoor applications also require suitable protection against moisture, dust, and physical exposure. The enclosure must protect electronics without obstructing the intended infrared path. Careful positioning can reduce many problems before sensitivity adjustments become necessary.

How Can You Compare PIR Sensor Modules Before Making a Purchase?

Sensor selection should involve more than comparing individual specifications. Buyers must also consider integration requirements, physical dimensions, and available technical documentation.

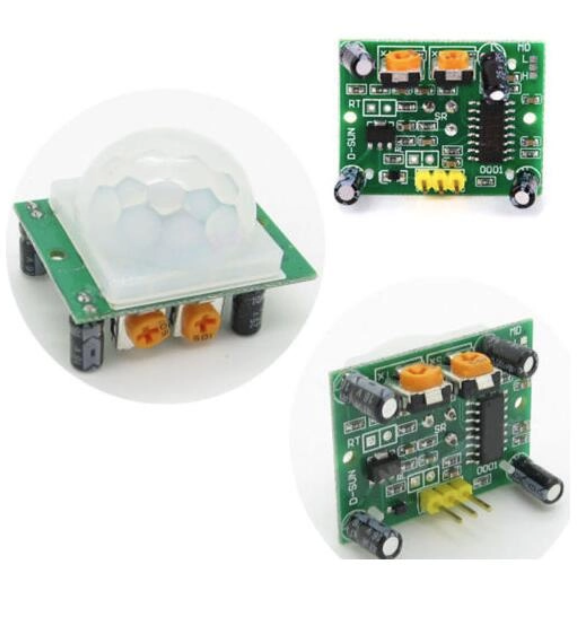

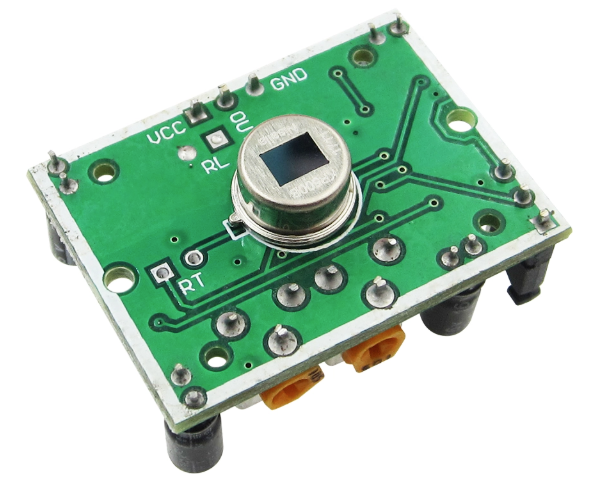

A bare pyroelectric sensing element differs significantly from a complete PIR module. Bare sensing elements require additional signal processing and supporting circuitry. Complete modules may already include amplification, filtering, and digital output functions. For many automatic lighting projects, an integrated module simplifies development and installation.

For example, our HaiWang HW-1006 PIR Sensor Module uses digital infrared signal processing. Its published specifications include a 3–12V operating range and approximately 3µA static current. The listed detection distance reaches up to 7 meters, depending on lens configuration. Its stated dimensions are 25 × 12 × 7 mm. These characteristics provide a useful reference when evaluating compact lighting applications.

However, these values do not guarantee identical performance in every installation. Lens selection, mounting conditions, and environmental factors can change actual detection behavior.

Before choosing a module, use this practical checklist:

• Confirm the detection range covers the intended area.

• Check whether the detection angle matches the installation layout.

• Verify operating voltage and output signal compatibility.

• Review standby current and total energy requirements.

• Confirm available delay settings and retriggering behavior.

• Check module dimensions against the available enclosure space.

• Review operating temperature and environmental requirements.

• Request technical specifications or samples for performance testing.

The best purchasing decision should balance sensing performance, integration requirements, and practical operating conditions. An inexpensive component may create additional development costs if it requires complex supporting electronics. A suitable integrated module may simplify production, even when its initial price is higher.

How Can You Verify Sensor Performance Before Final Installation?

Technical specifications provide useful guidance, but actual testing confirms whether a sensor suits the application. Testing should reproduce realistic movement patterns, lighting conditions, and installation geometry. Use the final lens and enclosure whenever possible.

Begin by checking detection across the intended coverage area. Walk through its nearest, farthest, and outer detection zones. Approach the sensor directly, then repeat the test using sideways movement. Record whether each movement produces a reliable lighting response.

Next, evaluate lighting behavior under realistic conditions:

1. Activation testing: Confirm lights activate promptly when someone enters the monitored area.

2. Coverage testing: Check for missed movement near corners and coverage boundaries.

3. Delay testing: Verify the lights remain activated for the intended duration.

4. Retriggering testing: Confirm additional movement extends lighting when required.

5. Daylight testing: Verify ambient light control prevents unnecessary activation.

6. Interference testing: Observe behavior near heating equipment, airflow, and changing temperatures.

Repeat important tests rather than relying on a single successful detection. If performance remains inconsistent, investigate the likely cause before replacing the sensor. Missed movement may indicate unsuitable placement, limited coverage, or insufficient sensitivity. False triggers may result from environmental interference or overly broad detection zones.

Premature lighting shutdown often involves delay settings or limited occupant movement. These distinctions help identify whether adjustments should involve the sensor, controller, lens, or installation position. For larger production projects, testing several samples under comparable conditions can reveal configuration differences before final approval.

Conclusion

Choosing the right Pyroelectric Infrared Sensor requires careful evaluation of detection range, sensitivity, and electrical compatibility. Proper installation and lighting control settings also help prevent false triggers and unnecessary energy consumption. A suitable sensor should provide reliable motion detection while supporting efficient automatic lighting. Testing its performance under actual operating conditions helps ensure consistent results. ShenZhen HaiWang Sensor Co.,Ltd. offers PIR sensor solutions for various automatic lighting applications. Our sensors support sensitive motion detection, low power consumption, and flexible integration into lighting systems. We also provide product selection assistance to help customers find suitable solutions for their specific project requirements.

FAQ

Q: What Is a Pyroelectric Infrared Sensor Used for in Automatic Lighting?

A: A Pyroelectric Infrared Sensor detects changes in infrared radiation caused by human movement. It triggers lighting systems automatically, improving convenience and reducing unnecessary energy consumption in corridors, stairways, and entrances.

Q: How Do I Choose the Right Detection Range for a Pyroelectric Infrared Sensor?

A: Choose a Pyroelectric Infrared Sensor based on room size, mounting height, and movement direction. Ensure its detection range covers the intended area without extending unnecessarily into neighboring spaces.

Q: Why Does a Pyroelectric Infrared Sensor Sometimes Fail to Detect Movement?

A: A Pyroelectric Infrared Sensor may miss movement because of poor positioning, blocked detection zones, or insufficient sensitivity. Stationary occupants may also remain undetected because PIR technology responds to infrared changes.

Q: Can a Pyroelectric Infrared Sensor Work With Any LED Lighting System?

A: Not necessarily. A Pyroelectric Infrared Sensor must match the lighting controller's operating voltage and signal requirements. Additional switching circuits or LED drivers may be necessary for safe operation.

Q: What Is the Difference Between PIR Sensors and Microwave Sensors for Automatic Lighting?

A: PIR sensors detect changes in infrared radiation, while microwave sensors detect movement using reflected electromagnetic waves. PIR sensors suit many passageways, while microwave sensors may detect smaller movements in some environments.
