How To Choose A Digital PIR Sensor for Security Alarm Systems?

A security alarm is only reliable when it detects real threats without frequent false alarms. Choosing the wrong digital PIR Sensor can lead to missed intrusions and unnecessary alerts. A PIR Sensor detects human movement by sensing changes in infrared radiation. However, detection range and sensitivity alone cannot determine its performance. Coverage, digital signal processing, and environmental conditions also affect detection reliability. Selecting the right sensor also requires checking electrical compatibility and false alarm resistance. These factors determine how well it works within a complete security system. Understanding these requirements helps security equipment developers and system integrators compare available options. The following sections explain how to evaluate key specifications and select a suitable sensor before finalizing your design.

Which Digital PIR Sensor Specifications Matter Most for Security Alarms?

Selecting a digital PIR Sensor starts with understanding its technical specifications. However, higher specifications do not always guarantee better security performance. The right combination depends on the protected space and its operating conditions.

Detection Range, Viewing Angle, and Coverage Area

Detection range describes how far a sensor can detect suitable moving targets. Viewing angle determines the area covered by its optical detection zones. Both specifications influence placement and overall intrusion detection performance.

For example, a narrow corridor requires different coverage than a large residential room. A wide viewing angle may help monitor open spaces. However, narrow detection patterns may perform better along defined entry paths.

Actual detection performance also depends on several physical factors:

● Fresnel Lens Design: Lens patterns divide the monitored area into separate infrared detection zones.

● Mounting Height: Incorrect installation height can create unexpected blind spots.

● Movement Direction: People crossing detection zones generally produce stronger signals than those approaching directly.

● Environmental Temperature: Lower temperature contrast can reduce the strength of detected motion signals.

A PIR Sensor's advertised detection distance represents performance under specific testing conditions. Therefore, compare its coverage pattern against the actual installation environment. Avoid selecting longer detection ranges without considering the required viewing angle.

Sensitivity and Human Motion Detection Performance

Sensitivity determines how easily a sensor responds to changes in infrared radiation. Higher sensitivity can improve detection of weaker motion signals. However, excessive sensitivity may also increase unwanted alarms. Human motion detection depends on more than sensitivity settings. Walking speed, target distance, movement direction, and background temperature all affect signal strength.

Consider a person walking across a monitored room. Their movement may cross several infrared detection zones, producing noticeable signal changes. However, slow movement directly toward the detector may create weaker signals. For security applications, choose sensors offering suitable sensitivity adjustment. Test different settings against expected intrusion movements before completing the design.

Operating Voltage, Power Consumption, and Output Compatibility

Electrical compatibility is equally important when selecting a digital sensor. Its operating voltage must match the available power supply. Output signals must also connect properly to the alarm controller.

Battery-powered wireless alarms benefit from low standby current. Lower consumption can extend battery life and reduce maintenance requirements. Meanwhile, wired security detectors may prioritize stable operation and consistent signal output. Their power supplies still require proper regulation and interference control.

Before selecting a model, review its electrical characteristics carefully.

These specifications provide an initial comparison between candidate sensors. However, they should be evaluated together rather than separately.

How Does Digital Signal Processing Improve Alarm Detection Reliability?

Digital signal processing helps security detectors interpret changes in infrared radiation. It can reduce interference and support more consistent motion detection. However, its effectiveness depends on the sensor's internal processing design.

Motion Signal Filtering and Noise Suppression

A digital PIR Sensor receives infrared signals through its sensing element. These signals may contain unwanted fluctuations caused by electrical interference or environmental disturbances.

Digital processing circuits can filter signals before generating detection outputs. This helps the sensor respond more consistently to relevant motion patterns. Some digital designs use bandpass filtering to focus on expected motion frequencies. Signals outside the selected frequency range receive greater attenuation. However, filtering cannot eliminate disturbances resembling genuine human movement.

Electrical noise can also affect detection reliability. Common sources include unstable supplies, nearby switching circuits, and poor circuit layouts. Therefore, evaluate filtering performance alongside the complete electronic design. A reliable sensor still needs stable power and suitable interference protection.

Trigger Logic, Pulse Counting, and Adjustable Detection Settings

Trigger logic determines when a sensor generates a motion detection output. Different processing methods can influence alarm response and unwanted triggering. Some digital sensors require multiple qualifying signals before activating their outputs. This approach may reduce reactions to isolated disturbances. For example, certain designs use pulse counting within a defined time window. Others may allow strong signals to trigger faster responses.

Adjustable detection settings can provide additional control:

• Sensitivity Threshold: Determines the signal strength required for detection.

• Pulse Confirmation: Helps distinguish qualifying motion patterns from isolated disturbances.

• Output Hold Time: Controls how long the detection signal remains active.

• Retrigger Behavior: Determines how new motion events affect an active output.

These settings influence both response speed and false alarm resistance. Excessive confirmation requirements may delay detection during brief intrusions. Choose trigger behavior according to the system's security requirements. The final alarm controller should also apply appropriate decision logic.

How Can You Select a PIR Sensor That Minimizes False Alarms?

False alarms create unnecessary notifications and reduce confidence in security systems. They can result from environmental changes, unwanted movement, or poor installation. A reliable selection process should consider these conditions before sensor integration.

Temperature Changes, Airflow, and Environmental Interference

PIR sensors respond to changes in received infrared radiation. Therefore, changing thermal conditions can sometimes resemble human movement. Direct sunlight, heating equipment, and moving warm air may produce unwanted detection signals. Rapid temperature changes can also influence sensing performance.

For example, a detector facing a sunlit window may experience changing infrared patterns. These changes can increase unwanted triggering under certain conditions. Ambient temperature also affects human motion detection. When background temperatures approach body temperature, infrared contrast becomes weaker. This can make some movements harder to detect.

To improve reliability, consider these measures:

• Install detectors away from direct sunlight and strong heating sources.

• Avoid aiming detection zones toward frequently changing thermal backgrounds.

• Evaluate temperature compensation features when available.

• Test sensing performance across expected operating temperatures.

Temperature compensation can help maintain more consistent detection behavior. However, it cannot guarantee reliable operation under every environmental condition.

Pets, Moving Objects, and Unwanted Motion

Pets can also activate infrared motion detectors. Their body heat and movement may create signals resembling human activity. Pet-related false alarms depend on animal size, movement patterns, and detector positioning. Simply reducing sensitivity may also reduce human intrusion detection performance. Some security detectors use specialized lens arrangements and processing methods. These features can help reduce responses to certain animal movements.

However, a digital sensing element alone does not guarantee pet immunity. This capability depends on the complete detector design. For environments containing pets, examine detection zone placement carefully. Avoid directing sensitive zones toward furniture where animals may climb.

Other moving heat sources also deserve attention. They may include nearby machinery or equipment producing changing thermal patterns. Test the complete alarm detector under normal household or workplace activities. This provides stronger evidence than relying only on advertised false alarm resistance.

How Should You Match a Digital PIR Sensor to Different Security Applications?

Different security environments require different detection characteristics. A suitable sensor for residential protection may not match commercial requirements. Therefore, define the intended application before comparing individual models. Residential alarm systems often monitor bedrooms, living areas, and entrance zones. They generally require balanced sensitivity and reliable indoor coverage.

Commercial installations may cover larger rooms, corridors, or restricted access areas. These applications benefit from carefully planned detection patterns and stable performance. Wireless detectors introduce additional power requirements. Their sensors should maintain low standby consumption without sacrificing necessary detection reliability.

The following comparison summarizes practical selection priorities.

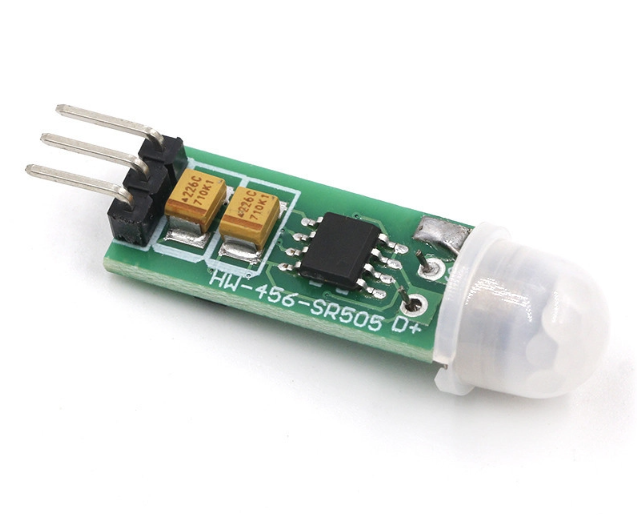

Product selection should also consider the difference between sensing elements and complete detector modules. A sensing element may require additional optics, electronics, and system programming.

At HaiWang, we offer digital PIR Sensor options for motion detection applications. Our P918H digital pyroelectric sensor integrates signal processing and adjustable sensitivity controls. It also provides configurable output timing for different detection requirements. Its published specifications identify a 2.7–3.3 V operating range and low operating current.

These characteristics can support compact security detection designs. However, the complete system still requires suitable optics and controller integration. For demanding security environments, evaluate whether PIR-only detection provides sufficient reliability. Some installations may require additional sensing methods or independent verification. The best selection always reflects the actual protected environment.

What Electrical and Installation Requirements Should You Check Before Integration?

Even a suitable PIR Sensor can perform poorly after incorrect integration. Electrical connections, optical design, and mounting conditions directly influence detection results. These factors should be reviewed during product development.

Sensor Interface and Alarm Controller Integration

Digital PIR sensors may provide different output signals and configuration interfaces. Their outputs must match the electrical requirements of the alarm controller. Check whether the sensor uses active-high or active-low triggering. Confirm its output voltage levels and required signal duration. Startup behavior also deserves attention. Some devices require stabilization before reliable motion detection begins. A sensing element should not be confused with a complete alarm module. Additional circuits may still be necessary for power regulation, communication, and alarm control.

During integration, verify these technical requirements:

• Supply Stability: Maintain voltage within the specified operating range.

• Output Compatibility: Match signal levels and controller input requirements.

• Startup Behavior: Confirm reliable operation after power activation.

• Circuit Protection: Reduce electromagnetic interference and supply disturbances.

• System Response: Ensure detection outputs activate the intended alarm functions.

Circuit layout can influence performance, especially near switching electronics. Keep sensitive signal paths protected from unnecessary interference.

Fresnel Lens Selection and Physical Installation

The Fresnel lens plays an important role in infrared detection. It directs infrared radiation toward the sensing element through defined optical zones. These zones determine how movement produces changing infrared signals. Lens selection therefore influences coverage, detection distance, and blind spots.

A sensor with excellent electrical specifications may still perform poorly behind an unsuitable lens. Installation height and orientation are equally important. Incorrect positioning can leave entrances unprotected or expose detectors to unwanted activity.

For reliable installation, follow several practical principles:

• Position detectors according to the intended lens coverage pattern.

• Arrange detection zones across likely intrusion paths.

• Avoid unnecessary obstructions within the monitored area.

• Protect optical surfaces from dirt, damage, and physical deformation.

Wall mounting often provides practical room coverage. However, the correct height depends on the selected lens and detector design. Always confirm coverage through installation testing rather than assumptions alone.

How Can You Test and Confirm a Digital PIR Sensor Before Final Selection?

Datasheet specifications provide useful information, but they cannot predict every operating condition. Real-world testing helps verify whether a candidate meets security requirements. Testing should measure detection reliability and unwanted alarms. It should also confirm electrical compatibility and stable operation. A structured evaluation process makes comparing different sensors easier.

Pre-Selection Testing Checklist

1. Coverage Verification: Test movement across the center and boundaries of the protected area. Record blind spots and areas producing weak responses.

2. Motion Detection Testing: Evaluate slow walking, normal movement, and different approach directions. Repeat tests at several distances to assess detection consistency.

3. False Alarm Testing: Observe the detector near expected environmental disturbances. Include heating equipment, airflow changes, and normal room activity.

4. Electrical Compatibility Testing: Measure supply current, output voltage, and controller response. Confirm proper operation during startup and repeated triggering.

5. Environmental Stability Testing: Evaluate detection under representative ambient temperatures. Check whether sensitivity changes create unacceptable performance differences.

6. Long-Term Reliability Testing: Perform repeated activation tests during extended operation. Observe trigger recovery, unexpected outputs, and general stability.

For example, engineers can establish several test positions across a room. Each position should include repeated walking trials under controlled conditions. Record successful detections and missed events for every location. The number of trials should support meaningful comparison between candidate designs.

False alarm testing should use a separate observation period. Record environmental conditions whenever unwanted outputs occur. Power measurements should also reflect actual operating modes. A low sensor current does not automatically mean low total system consumption. After testing, compare results against predefined acceptance requirements. These requirements should reflect the protected area's security needs.

At HaiWang, we can support customers evaluating PIR sensing configurations for specific detection applications. Our product range includes sensing elements and modules for different integration requirements.

Final selection should prioritize proven detection performance rather than individual specification advantages. A slightly shorter detection range may provide better results in a properly designed system. Reliable security depends on the complete detector, not one component alone.

Conclusion

Choosing the right digital PIR Sensor requires balancing reliable intrusion detection, false alarm resistance, and electrical compatibility. The longest detection range or highest sensitivity does not always deliver the best performance. Engineers should prioritize suitable coverage, adjustable trigger settings, and stable signal processing. Testing under realistic environmental conditions helps ensure reliable operation before final integration. At ShenZhen HaiWang Sensor Co.,Ltd., we offer digital PIR sensors featuring integrated signal processing and adjustable detection settings. Our sensing solutions help security equipment manufacturers improve detection reliability and simplify system integration. By combining suitable sensor technology and practical application support, we help customers develop dependable security alarm systems.

FAQ

Q: What Is the Difference Between a Digital and Analog PIR Sensor for Security Alarms?

A digital PIR Sensor integrates signal processing to support stable motion detection. Analog models require external processing circuits. Digital options can simplify integration and provide configurable detection settings.

Q: What Detection Range Should a PIR Sensor Have for Security Systems?

The ideal PIR Sensor detection range depends on room size and installation conditions. Choose coverage matching the protected area, considering viewing angle, mounting height, and possible blind spots.

Q: How Can I Reduce False Alarms From a Digital PIR Sensor?

Adjust sensitivity, optimize mounting position, and avoid nearby heat sources. A digital PIR Sensor featuring suitable filtering and trigger settings can help reduce unwanted alarms without significantly affecting intrusion detection.

Q: Can a Digital PIR Sensor Detect Human Motion in Complete Darkness?

Yes. A digital PIR Sensor detects infrared radiation changes rather than visible light. It can detect moving people in darkness, although temperature contrast and detection geometry still affect performance.

Q: Why Does a Security PIR Sensor Sometimes Fail to Detect Movement?

Missed detection may result from incorrect positioning, low sensitivity, or weak temperature contrast. Check the Fresnel lens, detection zones, power supply, and trigger settings before replacing the sensor.
