Thermistors are essential components in electronic systems, widely known for their ability to sense temperature and protect circuits. They are highly sensitive to changes in temperature, which makes them invaluable in various applications, from regulating the temperature in medical devices to ensuring the safety of power supplies. The term thermistor is often used to refer to temperature-sensitive resistors, but thermistors are generally categorized based on their temperature coefficient, or the way their resistance changes with temperature.
While the term NTC thermistor (Negative Temperature Coefficient thermistor) is commonly used in various applications, the term normal thermistor is less specific and may refer to any type of thermistor, including both NTC and PTC thermistors (Positive Temperature Coefficient thermistors). Understanding the key differences between NTC thermistors and normal thermistors can help in selecting the right component for specific applications. This article aims to explore these differences in detail, along with their individual applications.
1. Understanding Thermistors
What is a Thermistor?
A thermistor is a type of resistor whose resistance varies significantly with temperature. Thermistors are made from semiconductor materials, often metal oxides, that are specially engineered to provide a large change in resistance with relatively small changes in temperature. This characteristic makes thermistors especially useful in temperature sensing and in protecting circuits from overcurrent.
Thermistors are classified into two primary types based on how their resistance changes with temperature:
NTC Thermistors (Negative Temperature Coefficient): Resistance decreases as the temperature increases.
PTC Thermistors (Positive Temperature Coefficient): Resistance increases as the temperature increases.
The key factor that distinguishes these two types of thermistors is the direction of the resistance change relative to temperature. While both types are thermally sensitive and serve similar functions in terms of temperature regulation, the way they behave under heat is crucial for determining the most appropriate thermistor for a given application.
2. NTC Thermistor Explained
What is an NTC Thermistor?
An NTC thermistor is a type of thermistor that has a negative temperature coefficient. This means that as the temperature increases, the resistance of the thermistor decreases. The relationship between the temperature and resistance in an NTC thermistor is not linear but follows a predictable curve, which makes NTC thermistors ideal for precise temperature measurement and control applications.
These thermistors are typically used in circuits where accurate temperature sensing and overcurrent protection are needed. The most common materials used in the manufacture of NTC thermistors are ceramic compounds made from metal oxides. These materials are designed to exhibit a predictable decrease in resistance as the temperature rises.
How Do NTC Thermistors Work?
NTC thermistors operate based on the principle of resistance-temperature dependency, which means that as the temperature of the thermistor increases, the movement of charge carriers (electrons) inside the material increases, which in turn reduces the resistance. This property makes NTC thermistors highly effective in applications such as voltage dividers or temperature sensors, where the change in resistance can be directly correlated with temperature fluctuations.
NTC thermistors are highly sensitive, meaning they can detect even slight changes in temperature. This property makes them ideal for precise temperature control systems in medical devices, HVAC systems, and automotive applications, where exact temperature regulation is essential. The sensitivity of NTC thermistors allows them to detect minor temperature shifts, providing accurate feedback for real-time adjustments in the system.

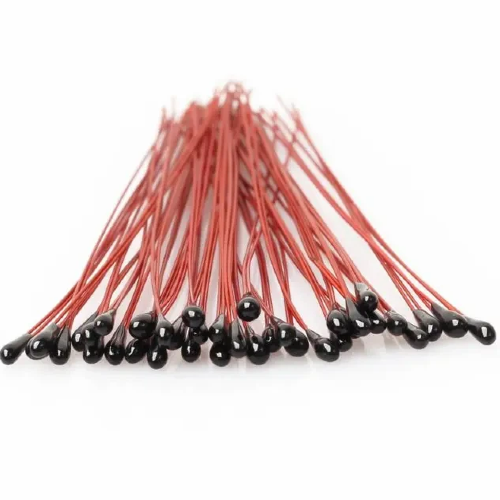

![NTC Thermistor]()
3. Normal Thermistor Explained
What is a Normal Thermistor?
The term normal thermistor is commonly used as a general term to describe thermistors in general, without specifying whether the thermistor is of the NTC or PTC type. However, in practical use, the term "normal thermistor" can often refer to NTC thermistors, especially in casual or broad applications. Technically, the phrase "normal thermistor" can include both NTC and PTC types, depending on the context.
Unlike the precise behavior of NTC thermistors, which exhibit a decrease in resistance with increasing temperature, normal thermistors could potentially refer to either NTC thermistors or PTC thermistors. This lack of specificity can sometimes cause confusion, as normal thermistors are a broad category, while NTC thermistors refer to one specific type.
4. Key Differences Between NTC Thermistor and Normal Thermistor
Difference in Resistance Behavior
Type of Thermistor | Resistance Behavior | Typical Applications |
NTC Thermistor | Resistance decreases as temperature increases. | Temperature sensing, overcurrent protection, thermal management. |
Normal Thermistor | Can refer to either NTC or PTC thermistors. | Used in various standard applications, depending on resistance behavior. |
The NTC thermistor exhibits a negative temperature coefficient, meaning its resistance decreases as the temperature rises. On the other hand, the normal thermistor could either be an NTC thermistor or a PTC thermistor, depending on the specific application and resistance behavior. NTC thermistors are often the default when the term "normal thermistor" is used, but it can refer to both types.
Application Differences
Thermistor Type | Application Focus |
NTC Thermistor | Precise temperature sensing, overcurrent protection, current limiting, and thermal management. |
Normal Thermistor | Used in various general applications where temperature resistance behavior is needed, including circuit protection and temperature monitoring. |
NTC thermistors are typically chosen for temperature sensing, overcurrent protection, and applications requiring precise resistance change with temperature, while normal thermistors may refer to any thermistor used in general applications.
Temperature Range
While both NTC thermistors and normal thermistors can operate within a wide range of temperatures, the NTC thermistor is typically suited for low to medium temperature ranges, generally from -55°C to 150°C. These thermistors are widely used in applications where temperature changes are not extreme but still require precise monitoring.
Normal thermistors, which can include both NTC and PTC thermistors, may have a broader temperature range depending on whether they are NTC or PTC types. PTC thermistors, for example, are more suitable for high-temperature applications because their resistance increases as the temperature rises, which can help limit current in circuits exposed to higher temperatures.
5. Why Understanding the Difference Matters
Understanding the differences between NTC thermistors and normal thermistors is important for ensuring that the right component is selected for specific applications. Choosing the wrong type of thermistor can result in incorrect temperature readings, ineffective overcurrent protection, or inadequate thermal management.
Why Choose NTC Thermistors?
NTC thermistors are ideal for temperature sensing and overcurrent protection in many industries, including medical devices, HVAC systems, and power supplies. Their fast response time and high sensitivity make them the preferred choice for systems that require accurate temperature control and protection from temperature-induced damage.
Additionally, NTC thermistors are crucial for thermal management in electronic devices, ensuring that temperatures remain within safe operating ranges to prevent overheating and failure. Their ability to respond quickly to temperature fluctuations makes them essential in modern automated systems and smart technologies.
6. Conclusion
In conclusion, while the term normal thermistor is commonly used to describe thermistors in general, it can refer to both NTC thermistors and PTC thermistors, depending on the application and resistance behavior. On the other hand, NTC thermistors specifically refer to thermistors with a negative temperature coefficient, where the resistance decreases as the temperature increases.
The primary difference between NTC thermistors and normal thermistors lies in their resistance-temperature characteristics, which significantly affect their performance and suitability for different applications. NTC thermistors are ideal for temperature sensing, overcurrent protection, and thermal management, making them essential in the development of modern technology.
At Shenzhen HaiWang Sensor Co., Ltd., we specialize in providing high-quality NTC thermistors designed to meet the specific needs of various industries. Our thermistors are known for their precision, reliability, and durability. To learn more about how our thermistors can benefit your projects or to get tailored solutions for your applications, please feel free to contact us. We are here to help you select the right components to optimize your systems and enhance overall performance.
7. FAQ
1. What is the main difference between an NTC thermistor and a PTC thermistor?
NTC thermistors decrease their resistance as temperature increases, while PTC thermistors increase their resistance as temperature increases. This difference makes NTC thermistors ideal for applications requiring temperature sensing and overcurrent protection, while PTC thermistors are more suitable for protecting circuits from excessive currents in high-temperature environments.
2. Can a normal thermistor refer to both NTC and PTC thermistors?
Yes, the term "normal thermistor" can refer to both NTC and PTC thermistors. It is often used as a general term for thermistors in standard applications where the specific resistance behavior (NTC or PTC) is not specified.
3. What is the temperature range for NTC thermistors?
NTC thermistors typically operate in a temperature range of -55°C to 150°C, depending on the specific design and material. They are well-suited for moderate temperature applications that require precise and rapid temperature control.
4. How do I choose between an NTC thermistor and a normal thermistor for my application?
If precise temperature control and overcurrent protection are needed, an NTC thermistor is the better choice. However, if you require a thermistor for general circuit protection or monitoring, and you're unsure whether the behavior should be NTC or PTC, a normal thermistor may suffice.
