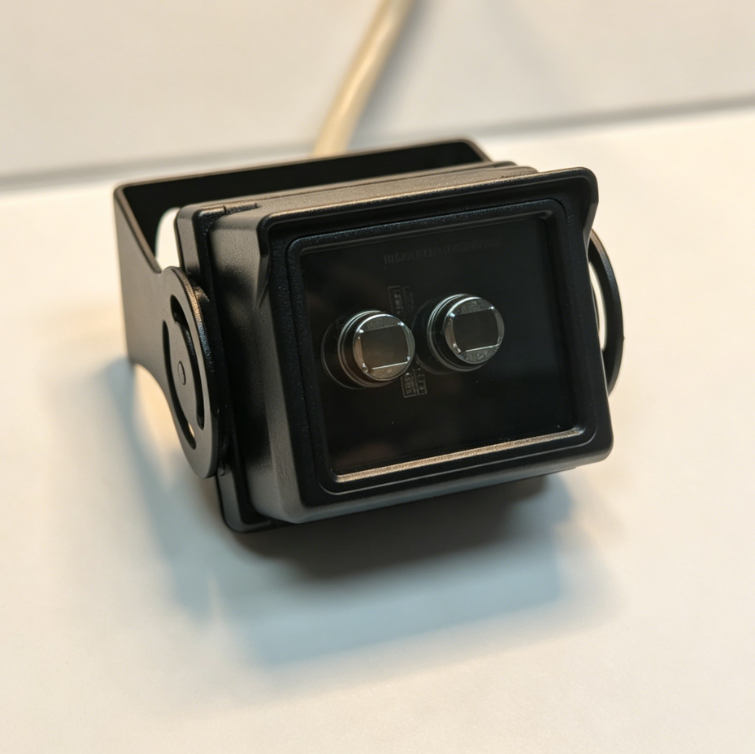

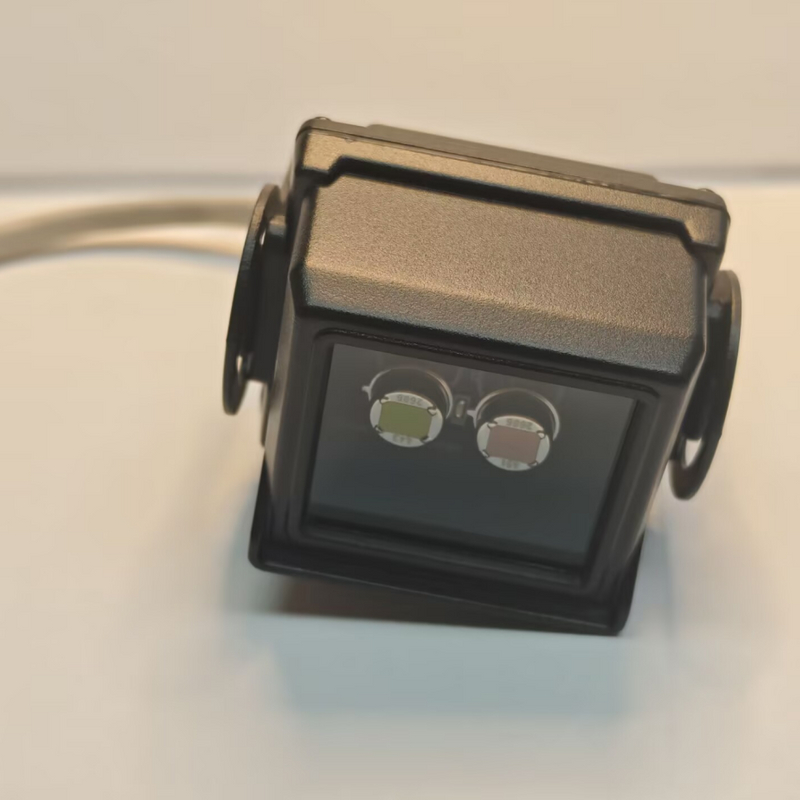

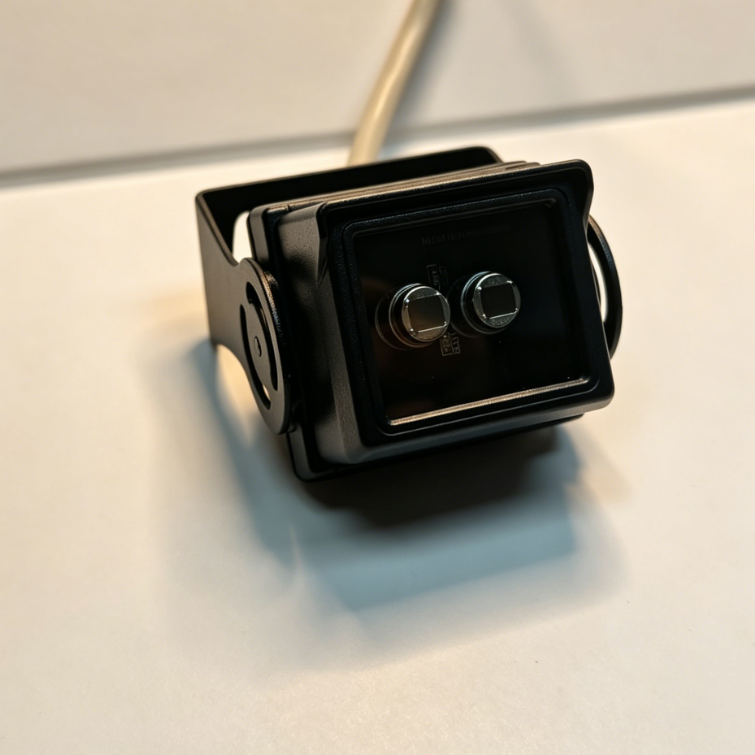

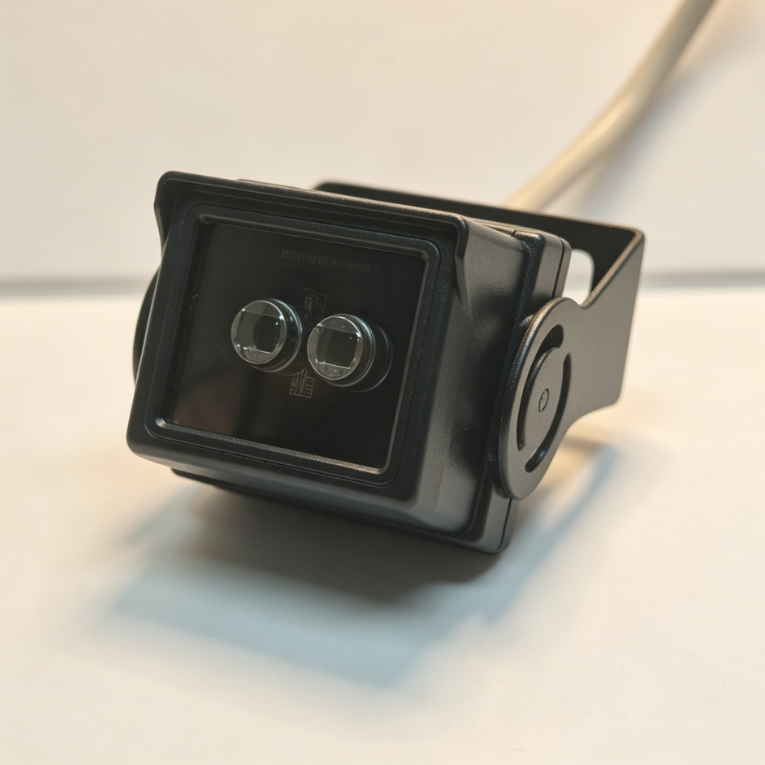

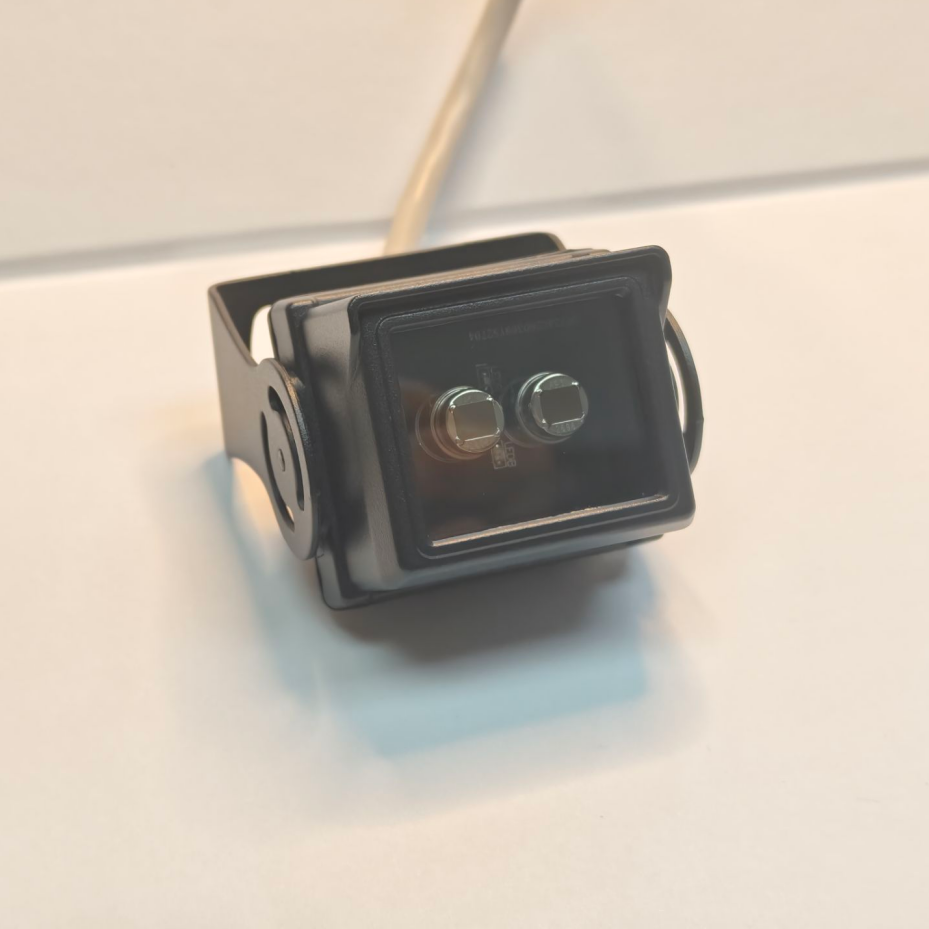

HW-005 Dual-Wavelength Industrial Fire Detector

The HW-F005 is an industrial-grade fire alarm device. It features a dual-band detection method combining infrared and thermal radiation sensing, utilizing the Curie temperature of lithium thallium crystal material. It is effective against flame temperatures ranging from 250-4000℃ and provides significant temperature difference and high-contrast polarity for fire early warning. The detector boasts stable performance and can quickly detect and trigger an alarm within 5-10 seconds when a fire occurs. The product can be set up via scanning a QR code with a mobile phone. It is suitable for various open flame detection fire alarms, including: internal fire alarms for machinery, security machine alarms, industrial plants, mining areas, chemical combustible material alarms, residential homes, charging piles, gas stations, chargers, and other equipment.

Model:
HW-005
Brand:
HW

Availability:

Quantity:



Inquire Add to Basket

fire alarm Fire Alarm Sensor Fire Alarm Detector Fire Detector Flame Sensor infrared flame sensor flame detecor flame alarm flame satety sensor flame sensing technology

Product Description

Setup Instructions

1. Powered via RS-8-core network cable, installed flush-mounted on the ceiling in fire protection passages for detection.

2. Multi-channel output: Fire alarm high-level output and fire alarm solid-state relay switch signal output.

3. Enclosed in a metal housing.

4. High-sensitivity outdoor fire detection, suitable for secondary development.

5. Wide range of applications, especially suitable for outdoor scenarios.

6. Immune to electromagnetic radiation, sunlight, and background thermal radiation.

7. Passive operation, low power consumption, multiple protections, and ultra-long service life design.

8. Installed inside equipment machinery, fully enclosed in metal, corrosion-resistant, waterproof, dustproof, and pollution-proof.

Alarm Threshold: Refer to the Chart

Model	HW-F005	Dual-Wavelength	Flame Alarm
Power supply	9v/500mA-15v/500mA	Default 12v	Built-in solid-state relay
Work indicator light	Blue: The indicator light shows normal operation. Red: Alarm indicator light.
Power consumption	＜3w
Sensing distance	1-30m	The larger the fire, the faster the detection
Relay load range	3A-100W	Dry contact switch signal
Fire alarm threshold	300mmx300mm	Area fire flame, size alarm threshold
Sensor	43----51	Dual-Wavelength Flame Alarm
Output 3-channel signal	Relay switch output	High-level output
Output port	RS-8 Network cable output
Network cable	RS8core network cable length 150mm
Blackbody threshold	500k	1HZ 0.3-3BPS	Default500K
Fire alarm sending time	5s-10s	Fire alarm duration: 3-5s	Repeatable triggering
Sensing angle	10-110°		Window angle
Sensor probe wavelength	380-750nm
Metal casing accessories	host x 1pcs
Module size	45mmx45mmx45mm		Casing size
Waterproof rating	IP66
Operating temperature	-20----+70

Output Port Definition

Line number	Color	definition
1.Power Positive (+) / VCC	Orange-white	VCC
2.Power Negative (-) / GND	Orange	GND
3.RS-485 Signal A (485A)	Green-white	----
4.Relay Common (COM)	Blue	Relay K
5.Relay Normally Open (NO)	Blue-white	RelayON
6.RS-485 Signal B (485B)	Green	----
7.Relay Normally Closed (NC)	Brown-white	----
8.Fire Alarm TTL	Brown	Fire alarm high level OUT
