An NTC thermistor (Negative Temperature Coefficient thermistor) is an essential component in temperature monitoring and control systems, where its resistance decreases as the temperature rises. This property makes it useful for applications such as temperature sensors, over-temperature protection, and even HVAC (Heating, Ventilation, and Air Conditioning) systems. In this article, we will guide you through the process of testing an NTC thermistor to ensure it is operating correctly.
Testing an NTC thermistor is a straightforward task, but it’s important to follow the correct procedures to obtain accurate results. This guide will detail the tools you need, how to test the thermistor, how to interpret the results, and what to do if the thermistor is malfunctioning.
1. Understanding NTC Thermistors
Before we proceed with the testing process, it’s important to understand what an NTC thermistor is and how it works. The fundamental operating principle of NTC thermistors is their resistance behavior in response to temperature changes.

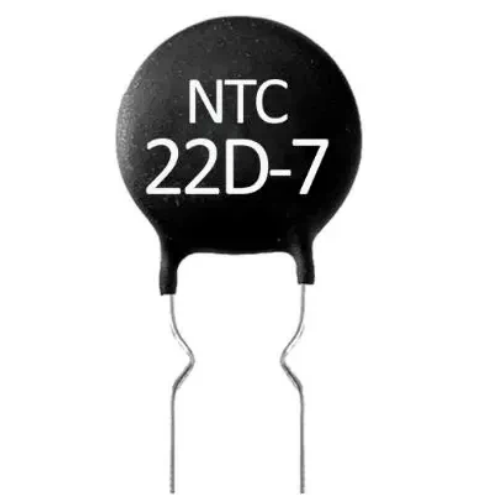

What is an NTC Thermistor?
An NTC thermistor is a type of temperature sensor whose electrical resistance decreases as its temperature increases. Unlike most other resistive components, whose resistance increases with temperature, the resistance of an NTC thermistor drops significantly with increasing temperature. This inverse relationship between resistance and temperature is what gives the NTC thermistor its name: Negative Temperature Coefficient.
NTC thermistors are made from semiconductive materials, and their resistance can vary dramatically over a specific temperature range. For this reason, they are widely used in applications such as:
Temperature measurement devices, where they help convert temperature changes into readable electrical signals.
Over-temperature protection circuits, where they act as fail-safes in systems like power supplies or battery chargers.
HVAC systems that require accurate and responsive temperature sensing to maintain efficiency.
How Does an NTC Thermistor Work?
NTC thermistors operate on the principle that as temperature increases, the number of free charge carriers (electrons) in the thermistor material increases, leading to a decrease in resistance. Conversely, when the temperature decreases, fewer free charge carriers are available, which increases the resistance. This predictable change in resistance with temperature makes NTC thermistors extremely useful in monitoring and controlling temperature-sensitive systems.
2. Tools Required for Testing an NTC Thermistor
Testing an NTC thermistor requires some basic tools to ensure accurate and reliable results. Let’s take a look at the tools needed for the task:
Multimeter
The primary tool for testing an NTC thermistor is a digital multimeter. A multimeter allows you to measure the thermistor’s resistance, which is the most critical parameter in determining whether the thermistor is functioning properly. The multimeter must be capable of measuring low resistance values, as NTC thermistors typically operate within the range of 1 Ohm to several megaohms.
Some digital multimeters also come with a temperature measurement function. This feature can help directly test the temperature response of an NTC thermistor.
Temperature Source
Since NTC thermistors change their resistance with temperature, a temperature source is required to test how the resistance changes. You can use:
Heat gun or hair dryer to apply heat to the thermistor.
Ice cubes or cold water to provide a cooling source.
Hot water bath for precise temperature control (especially if you need more accuracy in testing).
These tools will allow you to test the thermistor across a range of temperatures to verify its performance.
3. Preparation for Testing
Proper preparation ensures accurate testing results. Before testing your NTC thermistor, make sure to follow these steps:
Ensure Safety
Disconnect the thermistor from any active circuit. This is important because testing an NTC thermistor while it is connected to a circuit can result in inaccurate readings and potentially damage the multimeter. It's also crucial for safety reasons to avoid handling live circuits.
Isolate the Thermistor
Ensure the thermistor is isolated from other electronic components, especially if you're testing it within a system. Proximity to other parts can influence the resistance readings due to temperature variations or other factors.
Check the Datasheet
Every NTC thermistor has specific characteristics, such as resistance values at various temperatures and B values (which describe the thermistor’s temperature coefficient). Review the thermistor's datasheet to know what resistance values to expect at certain temperatures, as this will guide your testing.

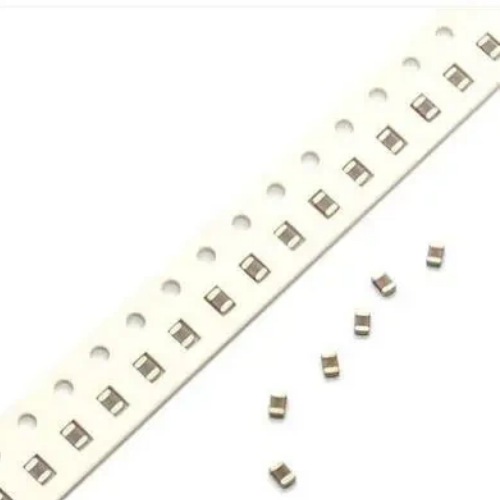

![NTC Thermistor]()
4. Measuring the Resistance of an NTC Thermistor
Once your thermistor is prepared, you can begin testing. The first step in testing an NTC thermistor is measuring its resistance at room temperature using a digital multimeter.
Step-by-Step Guide to Measuring Resistance
Set the Multimeter to Measure Resistance (Ohms)
Turn the multimeter dial to the resistance (Ω) setting.
If the multimeter has multiple resistance ranges, select a low range appropriate for measuring low resistance values (usually 1 Ohm to 1 Megaohm).
Connect the Multimeter Probes
Attach the red probe to the positive lead and the black probe to the negative lead of the thermistor.
Read the Resistance
The multimeter will display the resistance value of the thermistor. Record this value as the initial resistance of the thermistor at room temperature.
Verify the Resistance with the Datasheet
Cross-check your measured resistance value with the datasheet for the thermistor. Ensure that the measured value is in the correct range for the ambient temperature.
5. Testing the Thermistor at Different Temperatures
To verify that the NTC thermistor is working properly, you should test it at different temperatures and measure how its resistance changes in response.
Step-by-Step Guide to Testing Temperature Response
Apply Heat to the Thermistor
Use a heat gun or hair dryer to gradually heat the thermistor. Alternatively, you can place the thermistor in hot water to apply heat. Ensure that the temperature does not exceed the thermistor's rated maximum temperature to avoid damage.
Observe the Change in Resistance
As the thermistor heats up, its resistance should decrease. This change is the key behavior of an NTC thermistor. Use the multimeter to monitor the resistance and record it at different temperatures.
Apply Cooling
After heating, cool the thermistor using cold water or by placing it on an ice pack. The resistance should increase as the temperature decreases.
Repeat the Process
Repeat the heating and cooling process a few times and record the resistance values at various intervals of temperature. This will help ensure that the thermistor behaves predictably.
Example Resistance vs Temperature Table
Here’s an example of how the resistance might change with temperature in a typical NTC thermistor:
Temperature (°C) | Resistance (Ohms) |
25 | 10,000 |
35 | 8,000 |
45 | 6,500 |
55 | 5,000 |
65 | 3,500 |
75 | 2,500 |
6. Interpreting the Results
Expected Behavior of NTC Thermistors
The resistance of an NTC thermistor should exhibit the following behavior:
Decreasing Resistance: As the temperature increases, the resistance of the thermistor should decrease.
Predictable Resistance Curve: A properly functioning thermistor will follow a predictable and smooth curve of resistance change. Sudden spikes or inconsistencies in the curve may indicate a faulty thermistor.
Comparing to the Datasheet
The datasheet will typically provide a resistance-temperature curve or a B-value equation that helps predict the resistance at different temperatures. If your measurements do not align with these values, it suggests the thermistor may be faulty.
7. Verifying the Thermistor's Performance
After testing the thermistor, it's important to verify whether it meets the specifications provided in the datasheet.
Steps to Verify Performance
Check the B-value: The B-value is a key parameter of an NTC thermistor that defines its sensitivity. You can use the B-value to calculate the resistance at any given temperature.
Use the Steinhart-Hart Equation: For more advanced applications, you can apply the Steinhart-Hart equation to calculate the exact temperature from the measured resistance and compare it to expected values.
8. Troubleshooting Common Issues
While testing, you might encounter some issues. Here are some common problems and how to address them:
Faulty Resistance Behavior
If the resistance does not change with temperature: This could indicate that the thermistor is faulty or has become open-circuited. Check the connection and try testing again.
Inconsistent Readings
Inconsistent readings can result from a poor connection between the multimeter probes and the thermistor leads. Ensure that the probes are properly contacting the thermistor leads and make sure the connection is stable.
Complete Lack of Resistance
If the multimeter shows infinite resistance, the thermistor may have a broken lead or may be completely damaged. In this case, replacement is necessary.
9. Conclusion
Testing an NTC thermistor is a simple yet essential process to ensure its proper function in temperature-sensitive applications. By following the correct testing steps, you can accurately verify whether the thermistor is performing as expected. Regular testing is vital to maintaining the reliability of systems that depend on precise temperature readings, such as HVAC systems, power supplies, and automotive electronics.
