In a world where safety is a top priority, especially in homes, industries, and public facilities, flame sensors play a vital role in detecting fire hazards early. But how do these compact devices work, and what makes them so effective at spotting flames before they become catastrophic fires?
This article dives deep into the science behind flame detection, explores how flame sensors operate, discusses different types, and highlights key applications. Whether you're a homeowner, engineer, or someone curious about fire safety technology, this guide will help you understand how flame sensors work and why they’re essential in modern fire detection systems.
What Is a Flame Sensor?
A flame sensor is a safety device that detects the presence of a flame or fire. It’s used in fire detection systems to provide early warnings and automatically trigger safety responses such as alarms, system shutdowns, or activating fire suppression equipment.
Flame sensors operate by detecting specific characteristics of flames, such as light emissions in the infrared (IR), ultraviolet (UV), or visible spectrum. These light emissions are unique to combustion and can be distinguished from other light sources.
Why Are Flame Sensors Important?
Fire spreads fast. In many cases, smoke alarms can detect fire only after it has started producing smoke. But flames can be detected even before significant smoke appears. That’s where flame sensors offer a significant advantage.
Their quick detection allows:
Faster activation of alarms or fire suppression systems
Reduced risk of damage to property and life
Better energy efficiency in systems that rely on combustion (like gas furnaces)
How Do Flame Sensors Work?
Flame sensors are designed to identify the presence of a flame by detecting specific wavelengths of light that flames emit. Depending on the type of sensor, this detection happens in different parts of the electromagnetic spectrum:
Ultraviolet (UV) flame sensors detect UV radiation from flames, typically in the 180–250 nanometer range.
Infrared (IR) flame sensors sense IR radiation in the 700–1100 nanometer range.
UV/IR flame sensors combine both detection methods for increased reliability and reduced false alarms.
Let’s explore the working principles of each.
1. Ultraviolet (UV) Flame Sensors
These sensors detect the UV radiation produced by flames. They use a UV-sensitive photodiode or tube that generates a current when exposed to UV radiation.
How it works:
The flame emits UV radiation.
The UV sensor receives this radiation and generates an electrical signal.
If the signal crosses a threshold, it triggers an alarm or response.
Advantages:
Fast response time
Suitable for hydrocarbon and non-hydrocarbon fires
Limitations:
Can be affected by false alarms from lightning or welding arcs
Limited to line-of-sight detection
2. Infrared (IR) Flame Sensors
IR sensors detect heat signatures and flickering infrared light produced by flames. They are especially effective in environments with smoke or dust, where UV sensors may struggle.
How it works:
The flame emits infrared radiation.
The sensor detects changes in IR levels or flickering patterns.
A signal is processed and interpreted by internal logic to identify a flame.
Advantages:
Works in smoky or dusty areas
Less prone to false alarms from sunlight
Limitations:
Slightly slower than UV sensors
Can be triggered by hot objects without flames
3. Combined UV/IR Flame Sensors
These combine the strengths of both UV and IR sensors. They monitor both UV and IR signals simultaneously and use algorithm-based logic to decide whether a flame is present.
How it works:
Sensor receives both UV and IR signals.
Logic compares patterns and verifies flame presence.
Reduces false alarms and improves reliability.
Advantages:
High immunity to false positives
Very accurate detection
Limitations:
More expensive than single-spectrum sensors
Advanced Digital Flame Sensors

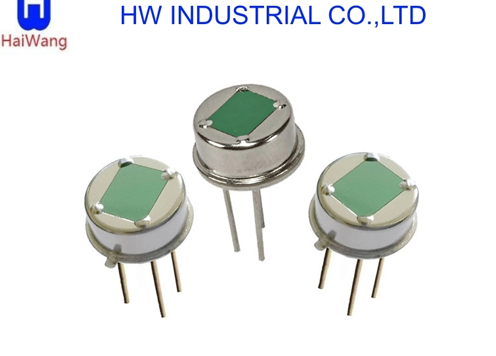

Modern digital flame sensors, such as those using LiTaO₃ (lithium tantalate) pyroelectric materials, offer precision, energy efficiency, and enhanced functionality.
Key Features:
Digital signal processing for noise reduction
Bidirectional communication with microcontrollers
Customizable detection thresholds and time windows
Low power consumption with standby modes
Electromagnetic shielding for interference protection
These advanced sensors are ideal for IoT devices, battery-powered safety systems, and industrial automation.
Applications of Flame Sensors
Flame sensors are used across various fields, including:
1. Residential Fire Alarms
Flame sensors provide faster response times than traditional smoke detectors and are used in high-risk areas like kitchens, fireplaces, or garages.
2. Industrial Safety Systems
In manufacturing plants, chemical facilities, or power stations, flame sensors are crucial for detecting fires in machinery, furnaces, or storage areas.
3. Gas Appliances and Boilers
Flame sensors ensure gas appliances ignite and burn properly. If the flame goes out unexpectedly, the sensor shuts down the gas supply to prevent leaks.
4. IoT Devices and Smart Homes
Smart flame detection systems use sensors integrated into connected platforms to alert users via mobile devices.
5. Aerospace and Military
Flame sensors are used to monitor engines and detect fuel fires during flight or combat operations.
Benefits of Flame Sensors
Rapid Detection: Identifies fire before smoke develops.
Precision: Differentiates between actual flames and other heat or light sources.
Reliability: Minimizes false alarms with intelligent filtering and logic.
Safety Automation: Triggers safety mechanisms automatically.
Energy Efficiency: Modern flame sensors are optimized for low power use.
How Flame Sensors Communicate
Most modern flame sensors interface with external controllers like microcontrollers (MCUs) via:
Digital signal outputs (high/low)
Interrupt lines to wake up the controller on detection
Single-wire communication interfaces for setting thresholds and reading data
This allows flexible and intelligent fire monitoring without constantly consuming power.
Flame Sensor vs. Smoke Detector
Feature | Flame Sensor | Smoke Detector |
Detects fire? | Yes (based on light/heat signals) | Only when smoke is produced |
Response time | Very fast (before smoke) | Slower |
False alarm risk | Low (if well-calibrated) | Higher (steam, dust, cooking) |
Use in smart systems | Easy integration | Often needs adapters or bridges |
Cost | Moderate to high | Low to moderate |
Choosing the Right Flame Sensor
When selecting a flame sensor, consider:
Application type (home, industrial, commercial)
Environmental conditions (dust, light, smoke)
Required response time
Power supply (battery-powered or mains)
Budget
Advanced models like digital pyroelectric sensors offer maximum flexibility and performance.
Conclusion: Flame Sensors—The First Line of Fire Defense
Flame sensors play a vital role in modern fire safety by detecting flames instantly and enabling quick response to minimize damage and protect lives. Whether in residential settings, industrial environments, or smart devices, these sensors are key to creating safer spaces.
With ongoing advancements in digital signal processing and energy-efficient technology, flame sensors are becoming more intelligent, responsive, and reliable. To explore innovative flame detection solutions tailored for diverse applications, we encourage you to connect with ShenZhen HaiWang Sensor Co., Ltd. As a trusted expert in flame sensing technology, HaiWang offers high-performance products backed by deep industry knowledge. Visit their website or reach out directly to learn how their solutions can enhance your fire safety strategy.
