Choosing The Right Flame Sensor for Your Fire Detection System

Views: 0     Author: Site Editor     Publish Time: 2025-03-03      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

In any industry, fire safety is a top priority. Whether you're operating in manufacturing, power generation, oil and gas, or even hospitality, ensuring that your fire detection systems are reliable is crucial for protecting your employees, equipment, and overall business operations. One of the most effective ways to detect fires early and prevent devastating damage is through the use of flame sensors. However, with various types of flame sensors available, choosing the right one for your fire detection system can be a challenging decision.



What are Flame Sensors?

Flame sensors are devices designed to detect the presence of flames in their environment by detecting specific wavelengths of radiation emitted by the fire. These sensors are used in fire detection systems to provide early warning and allow for a swift response to a potential fire, preventing further damage. Flame sensors are essential in industries where high-risk processes—such as combustion, chemical reactions, and the use of flammable materials—take place.

Flame sensors generally use infrared (IR), ultraviolet (UV), or a combination of both (dual-spectrum) technologies to detect flame radiation. When a flame is detected, the sensor sends a signal to the control system, which can then trigger fire suppression systems, alarms, or other safety measures to mitigate the risk.



Characteristics of Flame Sensors

1.Digital Signal Processing with Bidirectional Communication to the Controller

Flame sensors are equipped with advanced digital signal processing (DSP) capabilities, enabling them to process flame detection signals efficiently. The integration of bidirectional communication with the controller allows the system to both send and receive data. This feature enables continuous monitoring of the sensor's performance and facilitates real-time adjustments based on feedback from the control system. It also allows for the retrieval of flame detection data, enhancing the overall functionality and flexibility of the flame sensor in various industrial and commercial applications.

2.Configurable Detection Trigger Conditions and Support for Three Different Operating Modes

One of the standout features of modern flame sensors is their configurable detection trigger conditions. Users can adjust the sensor settings to activate detection under specific circumstances, providing customized flame detection solutions. The sensor supports three distinct operating modes, enabling versatility in different environments and scenarios. These modes include the monitoring of open flames, the output of results based on flame monitoring, and the ADC-filtered flame signal data output, offering a high degree of flexibility to meet various fire detection requirements.

3.Built-in Second-Order Butterworth Bandpass Filter for Infrared Sensor

The flame sensor is equipped with a second-order Butterworth bandpass filter integrated into its infrared sensor. This filter is essential for ensuring that only the relevant infrared signals from flames are detected, effectively minimizing interference from unwanted frequencies. By using this advanced filtering technique, the sensor enhances the accuracy of flame detection, ensuring that external signals or background noise do not trigger false alarms. This feature is particularly beneficial in industrial settings where environmental conditions may introduce unwanted signals.

4.Electromagnetic Shielding for Infrared Signal Conditioning Circuit

The infrared signal conditioning circuit in the flame sensor is fully encapsulated within an electromagnetic shielding cover, ensuring that the sensor operates with minimal interference from external sources. The only exposed components are the power and digital interface pins, which are essential for the sensor's operation and communication with the controller. This shielding provides exceptional resistance to radio frequency interference (RFI), which is crucial in environments with high levels of electromagnetic activity, such as factories, power plants, and other industrial sites where equipment can generate disruptive RF signals.

5.Optimized Power Efficiency for Battery-Powered Devices

The operational mechanism of the flame sensor is optimized for power efficiency, making it suitable for use in battery-powered devices. This feature is particularly important in applications where continuous operation is required but where power supply limitations exist. Whether used in remote locations or in battery-operated fire safety systems, the power-efficient design ensures that the sensor can operate for extended periods without draining the battery quickly, ensuring long-lasting and reliable performance in areas with limited access to traditional power sources.

6.Power Supply Voltage and On-Chip Temperature Detection

The flame sensor includes power supply voltage monitoring and on-chip temperature detection capabilities. These features are critical for ensuring that the sensor operates within its optimal parameters. By monitoring the power supply voltage, the system can detect any potential power issues or instability that might affect performance. On-chip temperature detection helps the sensor to adjust for environmental temperature fluctuations, ensuring stable operation under varying conditions. This self-monitoring capability enhances the reliability of the sensor, especially in environments with fluctuating power or temperature levels.

7.Quick Stabilization After Self-Check During Power-Up

One of the key advantages of modern flame sensors is their ability to quickly stabilize after performing a self-check during the power-up sequence. This self-check ensures that the sensor is functioning correctly before it begins to monitor flames. The quick stabilization process ensures that the system can begin detecting flames almost immediately after power is applied, reducing the time delay between power-up and operational readiness. This feature is especially useful in safety-critical applications where rapid detection of potential fire hazards is essential.

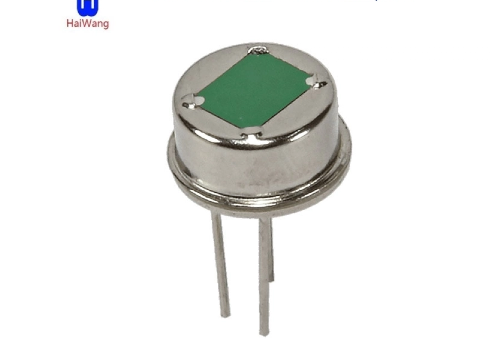

8.Eco-Friendly LiTaO3 Sensing Material Compliant with RoHS

The flame sensor utilizes the eco-friendly LiTaO3 (lithium tantalate) sensing material, which is widely recognized for its efficiency in detecting infrared signals. This material is not only highly effective but also environmentally friendly, as it complies with the RoHS (Restriction of Hazardous Substances) directive. The sensor does not require any exemptions or special certifications for RoHS compliance, making it a sustainable and environmentally responsible choice for industries looking to meet stringent environmental standards. The use of LiTaO3 ensures that the sensor delivers high performance while minimizing its environmental footprint.

These features combine to make the flame sensor an advanced, reliable, and environmentally conscious device, suitable for a wide range of applications where fire safety and detection are critical. Whether used in industrial, commercial, or residential settings, the flame sensor's superior functionality ensures timely and accurate flame detection, helping to protect people, property, and assets from the devastating effects of fire.



Factors to Consider When Choosing a Flame Sensor

When selecting the right flame sensor for your fire detection system, several factors should be taken into account to ensure the sensor meets your operational needs. These factors include:

1. Environment and Conditions

The environment in which the flame sensor will be used plays a significant role in determining the type of sensor you need. Consider the following environmental factors:

  • · Temperature: If your facility experiences high heat levels, an IR sensor may be more appropriate. UV sensors might not perform as effectively in high-temperature environments.

  • · Ambient Light: UV sensors may not work well in environments with high ambient light or exposure to UV radiation. In these cases, an IR sensor or dual-spectrum sensor would be a better choice.

  • · Smoke and Obstructions: UV sensors are excellent in smoke-heavy environments, but IR sensors are more suited for clear or high-heat areas. Dual-spectrum sensors provide a solution in environments where both smoke and heat are present.

2. Speed of Detection

In some industries, such as power generation or oil and gas, a fast response to a fire is critical. If quick action is required, UV flame sensors are an excellent choice due to their rapid detection capabilities. However, if you need more comprehensive protection, a dual-spectrum sensor may provide a more reliable, though slightly slower, response.

3. Risk and Application Type

The type of fire risk your business faces will guide your choice of flame sensor:

  • · Chemical Plants: For environments with volatile chemicals, a UV or dual-spectrum sensor is often the best choice.

  • · Gas Turbines: IR sensors are ideal for detecting flame failures in combustion chambers and turbines, where high heat is involved.

  • · Refineries: Dual-spectrum sensors are used in refineries to detect a wide range of fire types, ensuring that both fast and accurate detection is achieved.

4. False Alarm Prevention

False alarms can lead to unnecessary downtime, false evacuations, and increased maintenance costs. IR sensors generally have a lower risk of false alarms compared to UV sensors.



Conclusion

Flame sensors are vital components of any fire detection system, and choosing the right one can make all the difference in preventing catastrophic fires. Whether you need fast detection, reliable performance, or specific features like dual-spectrum detection, it’s important to choose a sensor that meets the specific requirements of your industry and environment.

ShenZhen HaiWang Sensor Co., Ltd. offers a wide range of high-quality flame sensors designed to provide optimal protection for your business. With advanced technology, customizable solutions, and exceptional customer support, HaiWang is your trusted partner in fire safety.
