Microwave sensor modules have become an essential component in a variety of electronic devices, especially in applications like LED lighting systems, where they can be used to control switches automatically based on motion detection. As technology advances, these sensors offer a range of benefits, including increased energy efficiency, convenience, and enhanced user experiences. This article aims to provide an easy-to-understand guide for beginners, explaining the working principles of microwave sensor modules, specifically their application in LED switches.
What is a Microwave Sensor Module?

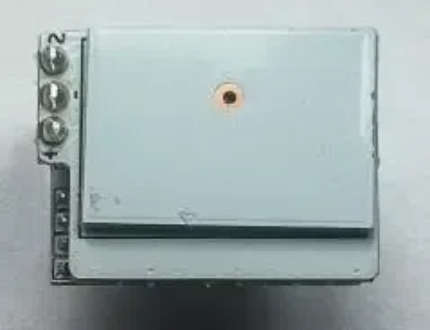

A microwave sensor module is an electronic device that uses microwave technology to detect motion and changes in the environment. Unlike traditional infrared sensors that detect heat signatures from moving objects, microwave sensors emit electromagnetic waves in the microwave frequency range (typically 2.4 GHz or 5.8 GHz). These waves bounce off objects and return to the sensor, allowing it to detect motion based on the reflection of these waves. Microwave sensor modules are often used in automation systems, security applications, and smart lighting systems, such as those found in LED lighting switches.
In the case of LED switches, a microwave sensor module can detect motion within a defined area and trigger the LED light to turn on or off automatically. This eliminates the need for manual switches and enhances convenience, making it particularly useful in places like corridors, bathrooms, or rooms where hands-free operation is desired.
The Basic Working Principles of Microwave Sensors
To understand how microwave sensor modules work, it’s important to first grasp the concept of microwave radiation and how it interacts with objects. Here’s a step-by-step explanation of the basic principles:
Emission of Microwave Signals: Microwave sensors work by emitting electromagnetic waves in the microwave frequency range. These waves are generated by a transmitter within the sensor. The transmitter sends out continuous or pulsed waves that travel through the air.
Reflection of Waves: When these waves encounter an object, such as a person or an animal, they bounce off the object and return to the sensor. This is similar to how radar systems work, where waves are sent out and reflections are used to determine the position of objects.
Doppler Effect: The key feature of microwave sensors is the Doppler effect. When an object moves, it alters the frequency of the reflected waves. This change in frequency (or phase shift) is detected by the sensor, allowing it to recognize movement. The sensor analyzes the returned signals, and when a significant shift in frequency is detected, it interprets this as motion.
Signal Processing: The microwave sensor module processes the returned signals using built-in electronics. It calculates the degree of motion and determines whether the object is moving towards or away from the sensor. Based on this information, the sensor can trigger an action, such as turning on or off the LED light connected to the switch.
Output to the LED Switch: Once motion is detected, the microwave sensor sends a signal to the LED switch to activate the light. In most cases, this is done through a relay or direct circuit connection, depending on the sensor's design. Some sensors also have adjustable sensitivity, allowing users to set how close or far an object must be before it triggers the light.
Key Advantages of Microwave Sensors for LED Switches
Non-Contact Operation: One of the main advantages of microwave sensors is that they can detect motion without the need for physical contact. Unlike mechanical switches, which require pressing or flipping, microwave sensors detect movement through the air. This makes them more durable and reliable since there are fewer moving parts to wear out.
Increased Sensitivity: Microwave sensors are more sensitive than infrared sensors because they can detect motion even through obstacles like glass, walls, or thin barriers. This means that they can still operate effectively in spaces where other sensors might fail, such as rooms with glass doors or walls that obstruct the direct line of sight.
Longer Detection Range: Compared to passive infrared (PIR) sensors, which have a limited range (usually around 10-15 feet), microwave sensors have a much broader detection range. Microwave sensors can typically detect movement over a range of 20-30 feet or more, making them ideal for larger spaces or rooms with higher ceilings.
Energy Efficiency: Using a microwave sensor module for controlling LED switches can contribute to energy savings. LED lights are already known for their energy efficiency, but combining them with motion-detecting sensors allows lights to be activated only when needed. This prevents the unnecessary waste of electricity when rooms are unoccupied.
Automatic Operation: Microwave sensor modules can automate the operation of LED switches. This makes them especially useful in environments where convenience and ease of use are essential. For example, in hallways, staircases, or bathrooms, the light can automatically turn on as you approach and turn off once you leave the area, offering a hassle-free lighting experience.
Applications of Microwave Sensor Modules in LED Switches
The versatility of microwave sensor modules makes them suitable for a wide range of applications where automated lighting control is needed. Some common examples include:
Smart Homes: In a smart home environment, microwave sensor modules are often used to control the lighting in various rooms, hallways, and entryways. By integrating these sensors into your home automation system, you can enjoy hands-free lighting control, improving both convenience and security. For example, the lights can turn on when someone enters a room and turn off once the room is empty.
Public Restrooms: Public restrooms, where lights are often left on unnecessarily, benefit from microwave sensors. With automatic detection of motion, lights can be activated when someone enters and turned off when the space is unoccupied, saving energy and reducing utility costs in public buildings.
Commercial Spaces: In commercial spaces such as offices, warehouses, and stores, microwave sensor modules can be used to control lighting in a way that maximizes efficiency. These spaces are often large, and having lights that automatically turn on when people are present and off when they’re not can lead to significant energy savings over time.
Outdoor Lighting: Outdoor spaces like parking lots, walkways, and gardens can also benefit from the use of microwave sensor modules. Motion-triggered lights provide added security by illuminating areas when motion is detected. This deters potential intruders and provides well-lit paths for people walking at night.
Emergency Lighting Systems: In emergency situations, microwave sensor modules can be integrated with LED emergency lights. These lights can be activated automatically when someone enters an area during an emergency, ensuring visibility and safety.
Conclusion
Microwave sensor modules offer an innovative and practical solution for controlling LED lighting switches in a variety of settings. Whether you are installing them in a home, office, public space, or outdoor environment, microwave sensors bring a level of convenience and energy efficiency that traditional manual switches simply can’t match. By understanding the working principles of these sensors, their advantages, and their applications, you can make more informed decisions about how to use them effectively in your own lighting systems.
